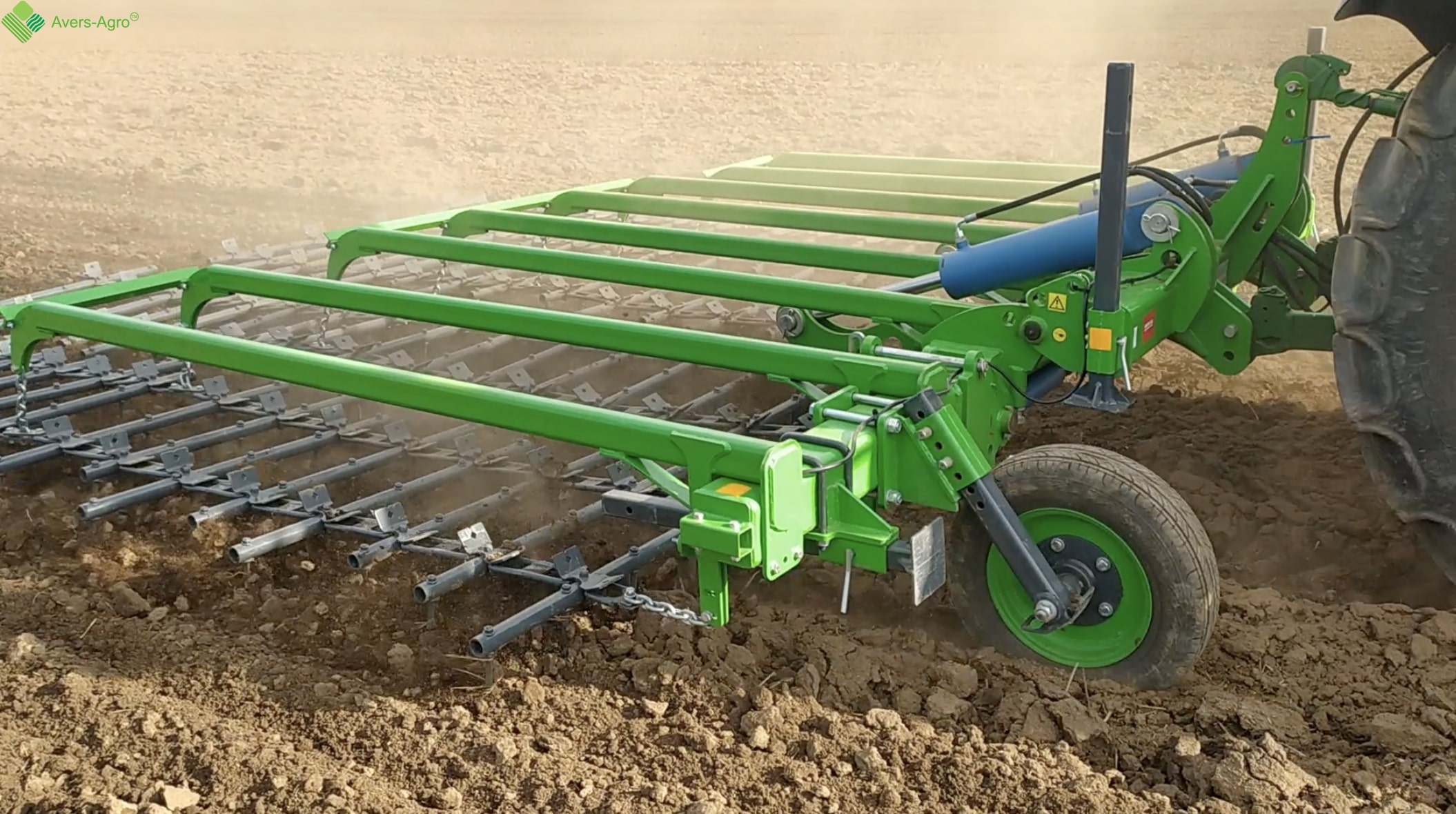

Green Way premium flex harrow with a working width of 6.2 m is designed for:
- loosening and leveling the surface of the field;
- crust breakdown and moisture retention in the soil;
- weed control in the "white thread" stage;
- even distribution of chopped straw and partial incorporation of crop residues (preservation of nitrogen in the soil);
- reducing soil erosion;
- soil preparation for sowing;
- the cultivation of fallow lands (virgin lands);
- steam processing;
- incorporation of fertilizers into the soil.
Design features and advantages of the Green Way 6.2 m flex harrow:
- flex harrow is used in different soil and climatic zones when processing soils of different texture with moisture up to 28% and hardness up to 3.5 MPa (35 kg / cm²), not clogged with stones, flagstone and other obstacles;
- flex harrow are aggregated with wheeled and tracked tractors with engine power corresponding to the working width of a particular model;
- the working body of the harrow - the tooth has a knife-like (rhombic) section and is made of high-strength steel. The approximate service life of the teeth is 8 hectares per tooth, which is approximately the distance covered by the tooth of 5000 km;
- the rhombic section of the tooth, in comparison with the standard square section of the teeth, with which most harrows are equipped, allows, while ensuring all technological operations, to reduce the load on the tractor's tractive effort by up to 20%, which in turn allows the use of a tractor with a capacity of 80-370 hp. for aggregation with harrows with a working width of 5 to 24 m;
- adjustment of the angle of attack of the teeth has 2 main positions: aggressive - 38 ° and passive - 50 ° and 4 additional positions;
- the teeth are fixed on transverse rods, pivotally connected to each other in a 16-row train. And this, in turn, allows you to qualitatively copy the features of the relief during processing;
- each 16-row train consists of two parts of 8 rows, which can be installed separately if necessary, for example, when the field is excessively clogged or the tractor is insufficiently powered;
- the pitch of the tooth field when using a 16-row train is 15 mm, with a tooth width of 16 mm, i.e. with such an arrangement of teeth, 100% of the field area is processed.
Specifications:
Working width, m ... 6.2
Working length, m ... 9.36
Length during transportation, m ... 4.75
Height during transportation, m ... 3.7
Transportation width, m ... 2.8
Total weight, t ... 2.03
Number of loops with teeth, pcs ... 4
Number of teeth of the trailing harrow, pcs ... 416
Distance between teeth in a row, m ... 0.24
Number of rows with teeth in a train, pcs ... 8 х 2 = 16
Distance between single teeth of the trail harrow, m ... 0.015
Depth of processing, mm ... 0-80
Adjusting the angle of attack of the teeth:
2 basic positions (38 ° and 50 °)
4 additional provisions
Tire sizes:
Support wheels ... 10.0 / 75-15.3 (14PR)
Air pressure in tires, bar ... 4-5
Tractor hitch ... pendulum
Hydraulic system pressure, bar ... 180
Minimum tractive power of the tractor, h.p. ... 100
Number of attendants, people ... 1
this design features 6 positions of adjustment of attack teeth.
the design of the loops allows you to go into the field for any soil (not sensitive to soil moisture).
the distribution of crop residue after passage of harrow provides even saturation of the soil organic matter and moisture retention, which in turn will directly affect the future harvest.
