Harrow hitch 21 meters wide buy from the manufacturer Avers-Agro
En
aversagro@gmail.com

Harrow frame 21m

In stock
Article: 10405

Harrow frame 21m

In stock
Article: 10405

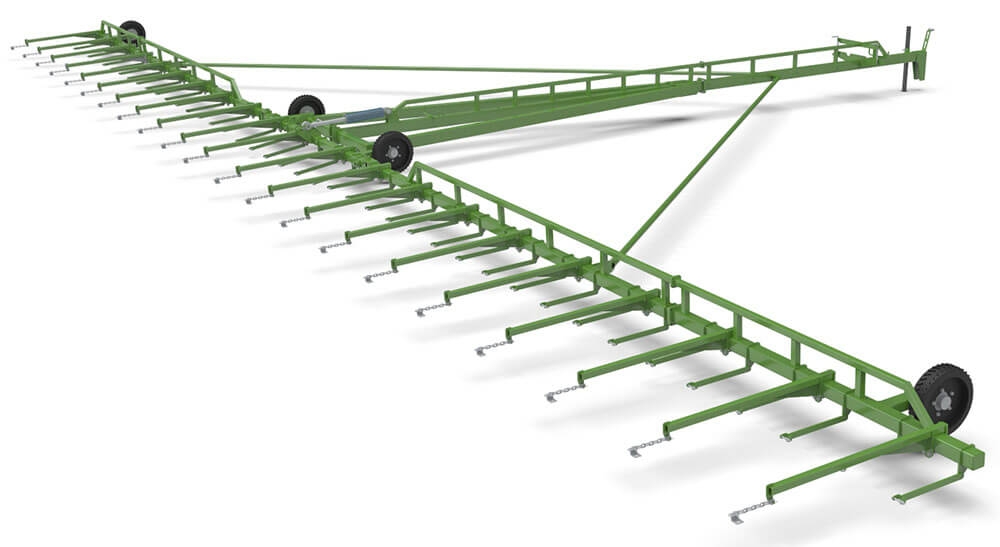

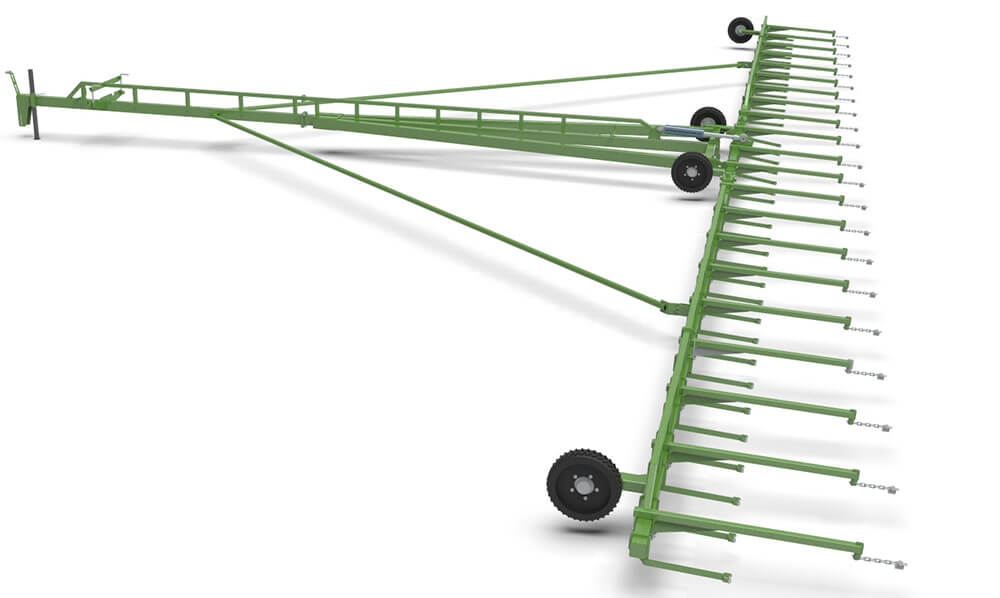

Hydraulic harrow hitch 21 meters wide:
  • allows the installation of tooth or spring harrows
  • hydraulic lowering-lifting mechanism
  • increased ground clearance 0.6m
  • metal restriction rods
  • tractor power not less than 110 hp
The type of aggregation
Trailing
Power tractor
not less than 110 hp
297 100 грн
270 100 грн
For more information
contact us by phone:

The coupling of harrows with a working width of 21 meters from the manufacturer Avers-Agro is designed for a wide range of tillage operations. The unique frame design allows you to install on the hitch as a section of the tooth harrow, and section of the spring harrow. This solution allows you to actually have two units based on one frame.

The design of the 21 meter harrow coupling has been completed with all the wishes of the farmers and is constantly being developed and improved by the efforts of the design and production resources of Avers-Agro.

Design features of the 21 meter hydroficated harrow hitch:

  • conversion to a tooth harrow or spring harrow
  • hydraulic mechanism for lowering and raising the harrows. Allows you to raise and lower the harrows during operation, thereby facilitating maneuvers on the field.
  • increased clearance (0.6m). It is a big plus when operating the unit in a transport position.
  • metal restriction rods. This solution makes it possible to move the harrow both in front and back, which gives greater maneuverability in small areas of the field.
  • easy access to the transport wheels in the folded position of the harrow, for routine repair and maintenance.

Specifications

Productivity, ha/hour

18.2

Working speed, no more, km/h

9

Transport speed, no more, km/h

20

Working width, m

21

A type

trailed

dimensions

length m

10,9

width m

21

height, m

0,8

Transport length, m

10,9

Transport width, m

4,2

Transport height, m

2,2

Unit weight kg

1950

Tractor power, though, HP.

110

Attendants

1
