Roller chopper Shredder L60.550W frame (drum with diameter of 550mm)

In stock
Article: 10002

Roller chopper Shredder L60.550W frame (drum with diameter of 550mm)

In stock
Article: 10002
Roller chopper vegetable Shredder residues L60.550W frame with the diameter of the roller 550mm, working width 6m, is aggregated with tractors of class 1.4.
The type of aggregation
Trailing
Power tractor
not less than 80 hp
грн
For more information
contact us by phone:

Recommendations:

the Knives of high quality steel (125х8 mm). the

Equipped with axes from high-quality steel with a diameter of 50 mm.

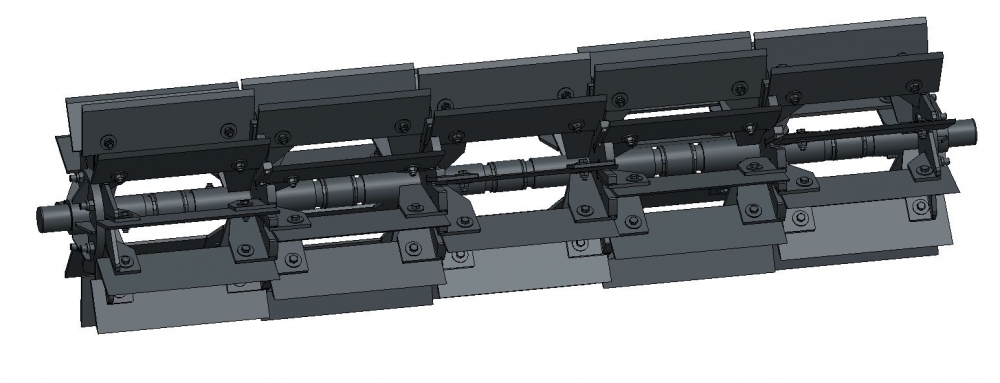

the Shafts are made of welded and modular construction with interchangeable bushings and chassis bearing, which ensures the maintainability and durability of the Assembly.

the Rink has a radial positioning of the knives that lightens the load on bearings and requires less traction power of the tractor.

  • the Drum has a load of 350 kg per meter. Can be retrofitted frame ice rink loads of 25 kg, which are inserted inside of the shaft roller. the Scheme of weights given to managers.



specifications
Performance, ha/h 7,2
working speed, km/h 12
Transport speed, max, km/h 20
working width,m 6
the roll Diameter, mm 550
Number of rollers, PCs 3
the rink frame
overall dimensions in working position
length 2,8
width, m 6,25
height, m 1,05
overall dimensions in transport position
length 4,9
width, m 2,25
height, m 1,6
Weight, kg 2000
Power of tractor engine, min, L. S. 80



Designed for shredding crop residue after sunflower, corn, stubble, alignment and partial mulching the surface of the field.

the Rink frame:

  • the it is not clogged with earth, crop residues and allows operation in the rain;
  • used to work on wet soil;
  • a cavity on the rink not need to be cleaned from the mud.
