Green Plains TSM Pneumatic Disc-Anchor Seeder 8.4 m
  • Avers-Agro anchor coulter for row seeding
  • two-section hopper
  • row spacing 350 mm
  • working width 8.4 m
The type of aggregation
Power tractor
not less than 220 hp
For more information
contact us by phone:

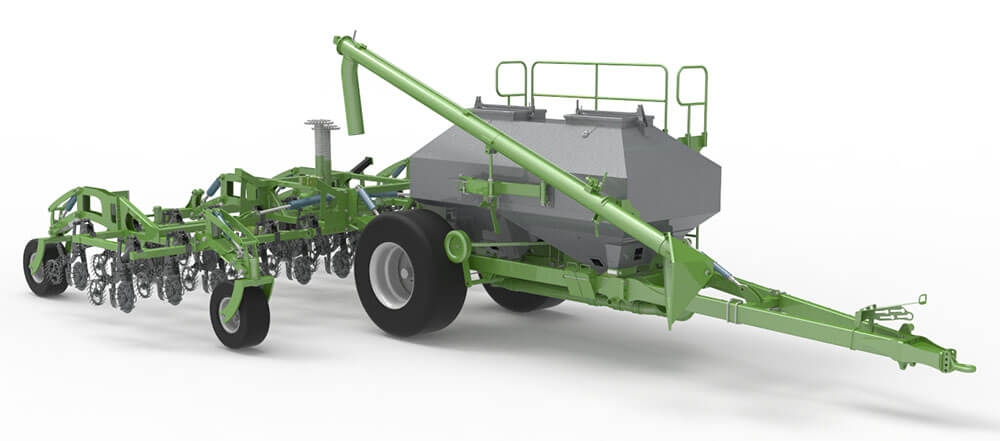

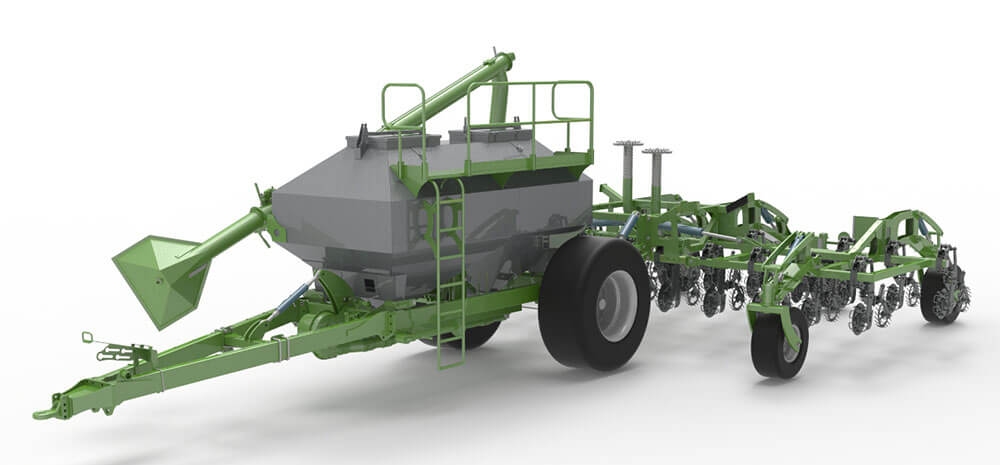

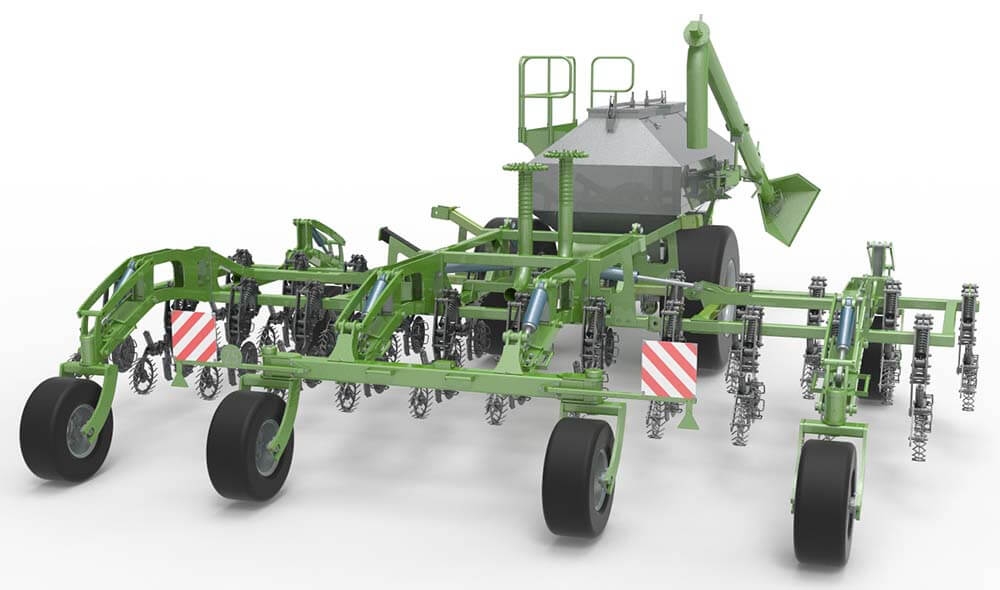

Green Plains TSM pneumatic disk-anchor seeder with a working width of 8.4 m.

Designed for simultaneous sowing of various crops: cereals, small seeds, row crops, as well as cultivation and fertilizing in one pass. Works well on wet soil. Excellent sowing performance with classic, minimal and zero technology. Cuts plant debris preventing them from falling into the sowing bed.

Benefits of the Green Plains TSM 8.4 m Disc-Anchor Seeder:

  • convenient and easy to operate;
  • increased reliability and durability of nodes and the unit as a whole;
  • minimal damage to the surface soil layer;
  • minimal stubble in the seed well;
  • precise and uniform sowing to the desired depth, even for a large number of crop residues;
  • simple, precise and flexible adjustment of the metering unit.


Type ... anchor, pneumatic

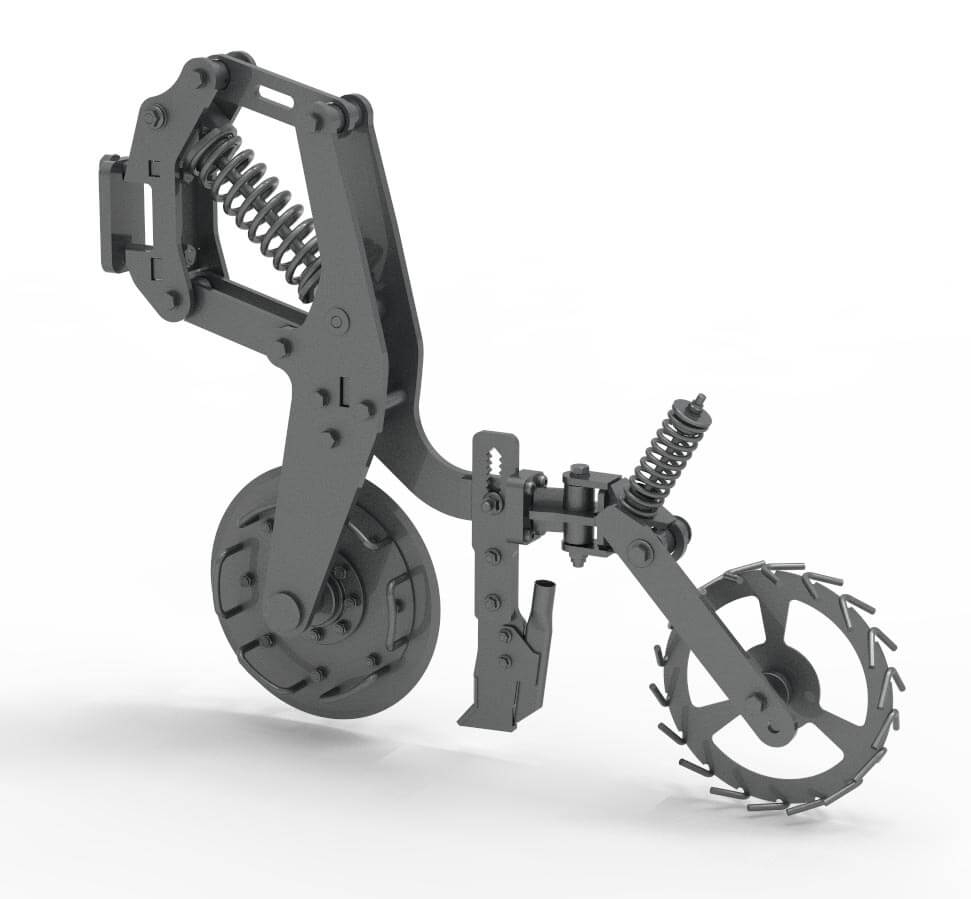

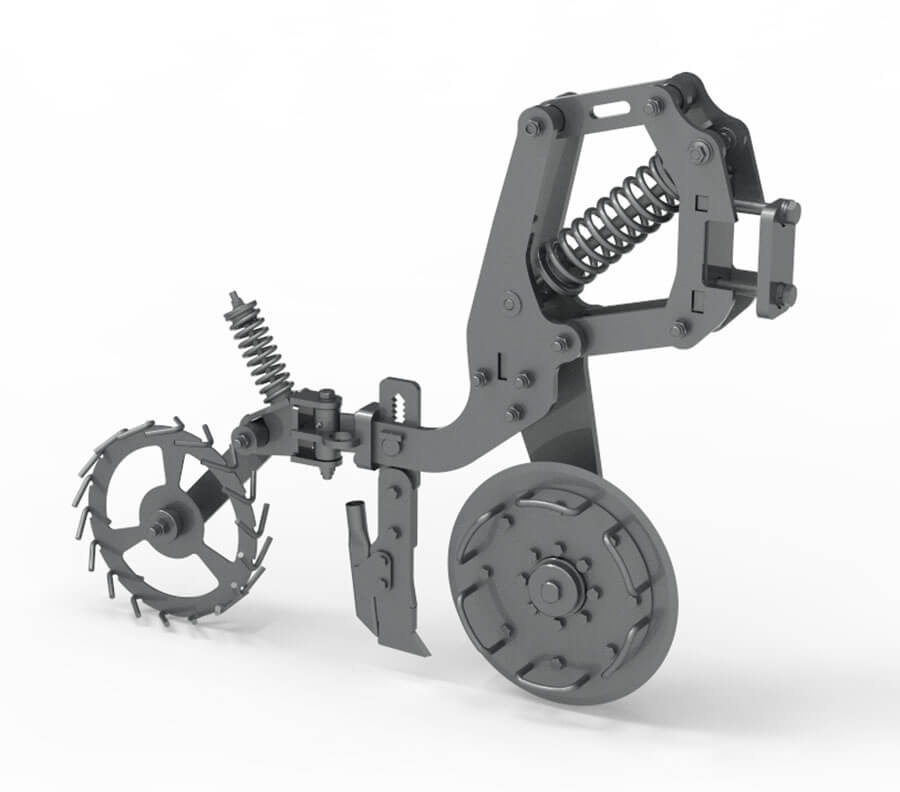

Opener type ... Avers-Agro anchor opener for row seeding
Number of coulters,
pcs ... 24
Number of rows of openers,
pcs ... 2
Coverage, m ... 8.4
Aisle width, mm ... 350
Fertilizing ... starting dose - with seeds
Operating speed, km / h ... 8-15
Minimum turning radius, m ... 10
Minimum tractor power, kW (hp) ... 160 (220)
Hopper ... two-section
Hopper capacity, m3 ... 7.5
Dispenser drive ... mechanical
Number of dispensers, pcs ... 2
Transport dimensions are long, mm ... 13060
Transport dimensions width, mm ... 4362
Transport dimensions height, mm ... 3943
Maximum hydraulic oil pressure, bar ... 180
Weight, kg ... 10990
