Dynamic balancing of combine rotors on a universal pre-resonance machine 9D716
In stock
Article: 10283
Dynamic balancing of combine rotors on a universal pre-resonance machine 9D716
In stock
Article: 10283

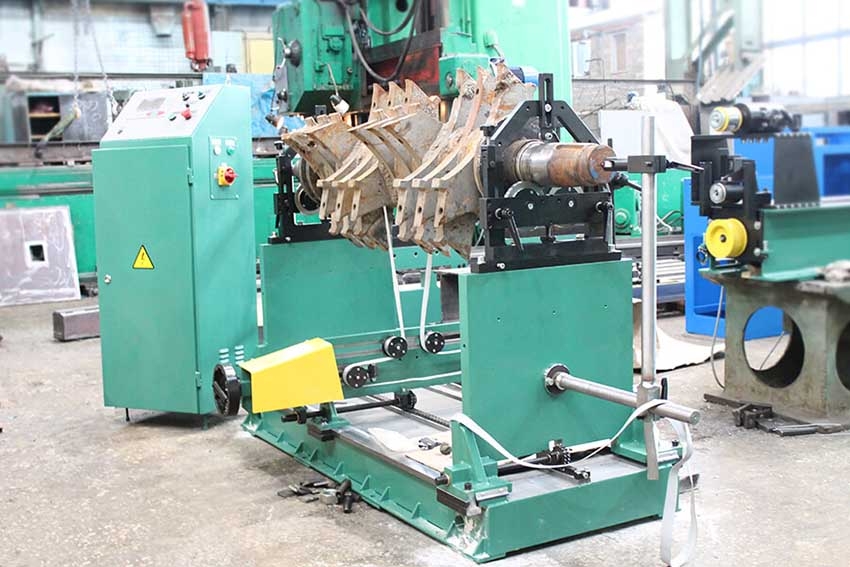

Balancing machine universal cortonensis 9D716 with a balancing two-plane microprocessor-based device PB-02M
1 грн
For more information
contact us by phone:
contact us by phone:
Balancing any bodies of revolution with a guarantee of quality and expert advice:

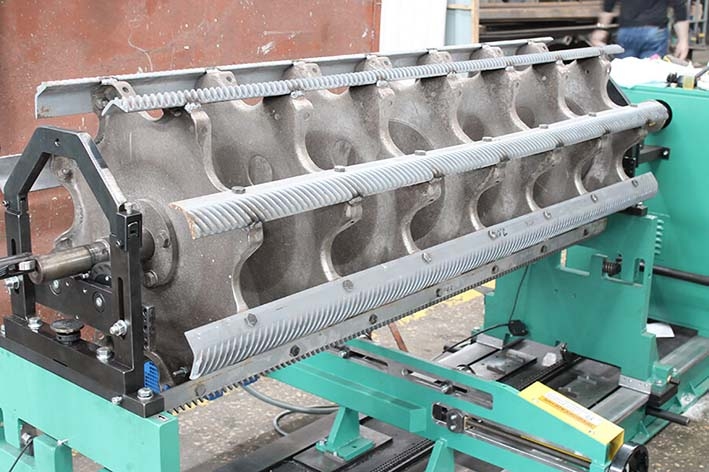

- Balancing the threshing drum of the harvester
- Beater balancing (breakaway beater) of the harvester
- Balancing shaft shredder harvester
- Dynamic balancing of the rotors of the harvester
- Dynamic balancing of the drum of the accelerator

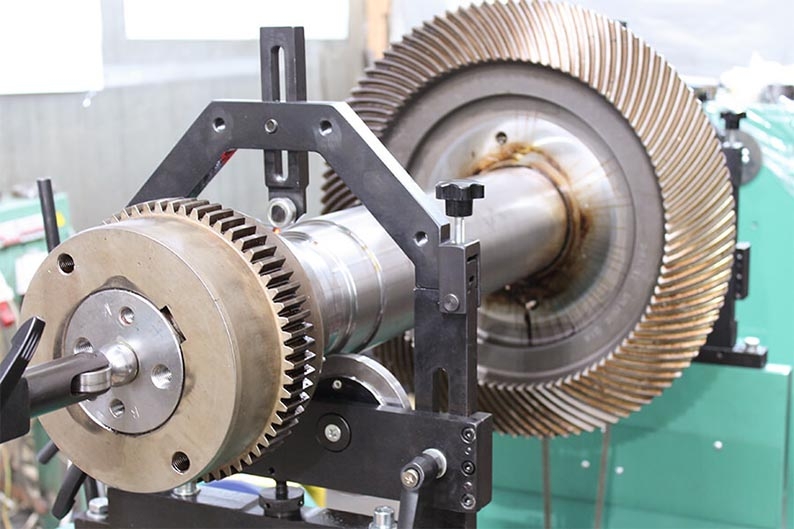

- Dynamic balancing of turbine rotor, turbine blower
- Dynamic balancing of the armature (rotor) of the motor
- Balancing transport auger, unloading auger, screw headers etc.
Specifications
| Settings | 9D716 |
|---|---|
| Range of mass of the balanced rotor, kg | 5 - 500 |
| Maximum rotor diameter (over bed), mm | 1300 |
| Diameter of the bearing journals of the rotor, mm | 30 - 180 |
| Distance between the centres of bearing journals of rotor, mm, min/max | 200 - 2000 |
| Support type | Rollers |
| Minimum achievable residual specific disbalance, g.mm/kg | 0,4 |
| Range of frequencies of rotation of a rotor, rev/min | 300 - 1500 |
| Drive type | Frequency-regulated asynchronous electric drive |
| Motor power, kW | 4,0 |
| Element transmitting the rotation of the rotor | Strap |
| Instrumentation | Balancing device |
| Length of the base, mm | 2600 |
