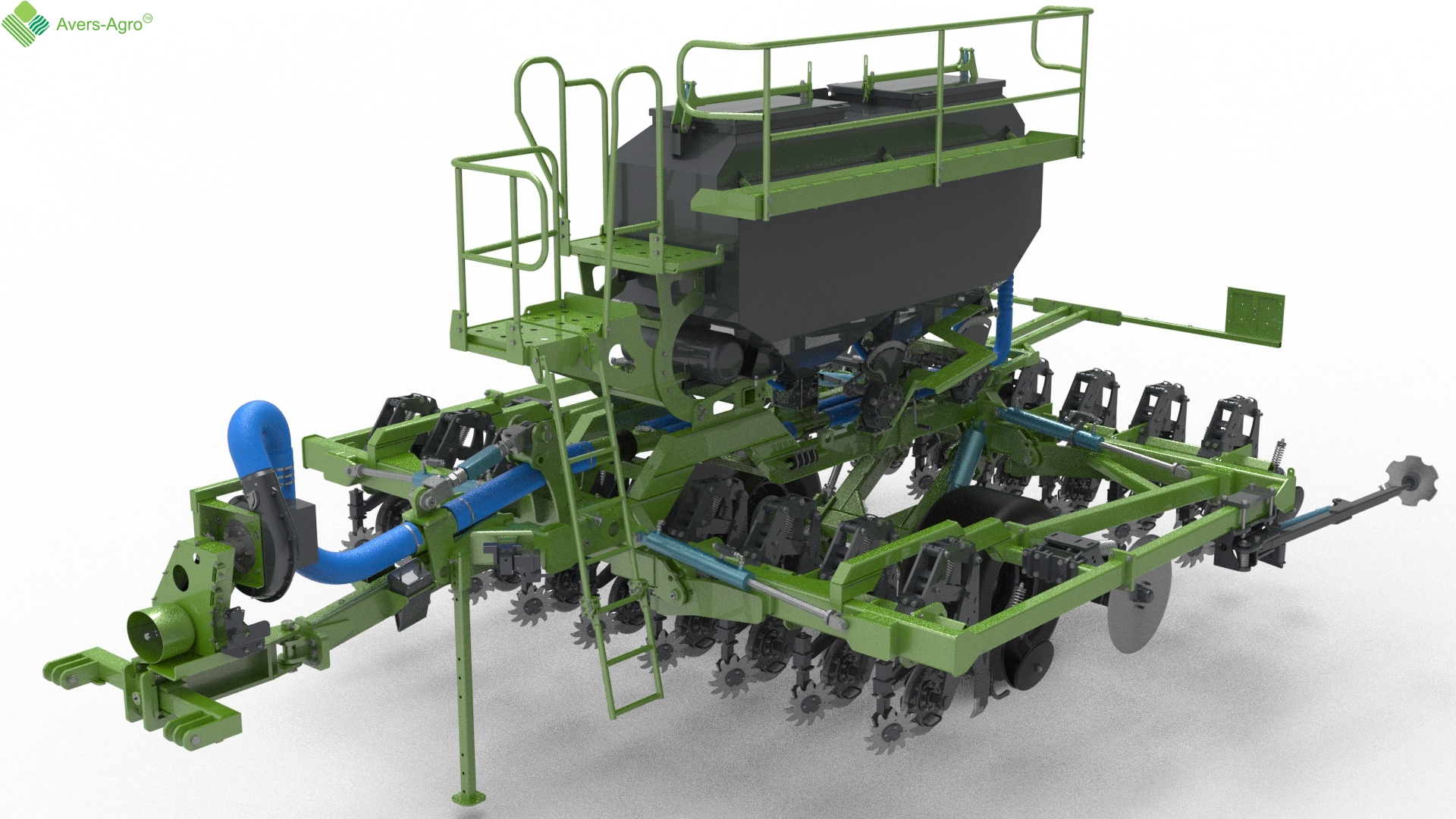

Multisem TS 4.2 pneumatic disk-anker seeder
Technical specification of the TS disk hopper coulter:
Length, mm………………………………………..1300
Width, mm…………………………………………242
Height, mm………………………………………..1000
Ground pressure force, kg………………………400
Anchor width, mm……………………………….15
Packer wheel diameter, mm…………………...300
Cutting disk diameter, mm…………………….405
Seeding depth adjustment, cm……………….2-10
Coulter stroke for terrain following, mm……..350
Mounting on the drill frame…. 80x80 or 100x100 bar
|
Indicator |
Value |
|
Working width, m: |
4.2 |
|
Working length, m: |
7.6 |
|
Transport length, m |
7.6 |
|
Transport height, m: |
3.7 |
|
Transport width, m: |
3 |
|
Total weight, tonnes: |
6.13 |
|
Number of coulters: |
17 |
|
Coulter spacing, cm: |
0.25 |
|
Number of coulter rows |
2 |
|
Seed/fertilizer placement depth, mm |
20-100 |
|
Depth adjustment |
Clip set 50/30/19/10/7 mm |
|
|
for hydraulic cylinders |
|
Hopper capacity 55/45, l |
2400 |
|
Seed, l |
1320 |
|
Fertilizer, l |
1080 |
|
Application rate min/max: |
|
|
Seed, kg/ha |
1/350 |
|
Fertilizer, kg/ha |
3/350 |
|
Seed/fertilizer rate adjustment |
Variable speed drive |
|
Tyre sizes: |
|
|
Support wheels: |
550/045-22,5 16PR FLOTATION 558 |
|
Support wheels, optional: |
15.0/70-18 14PR AW-705 |
|
Tyre pressure, bar |
3,3 – 3,6 |
|
Tractor hitch: |
Two-point NU-2/NU-3 |
|
Hydraulic requirement |
|
|
raising/lowering: |
1 double acting spool |
|
Fan drive |
Tractor PTO |
|
Hydraulic pressure, bar: |
180 |
|
Braking system (optional) |
Pneumatic |
|
Number of tines of the spring harrow - scraper, pcs (optional) |
96 |
|
Tine diameter of the spring harrow - scraper, mm (optional) |
7 |
|
Minimum tractor pulling power, hp: |
130 |
|
For deep tillage recommended, hp: |
150 |
|
Number of operating personnel, persons |
1 |
