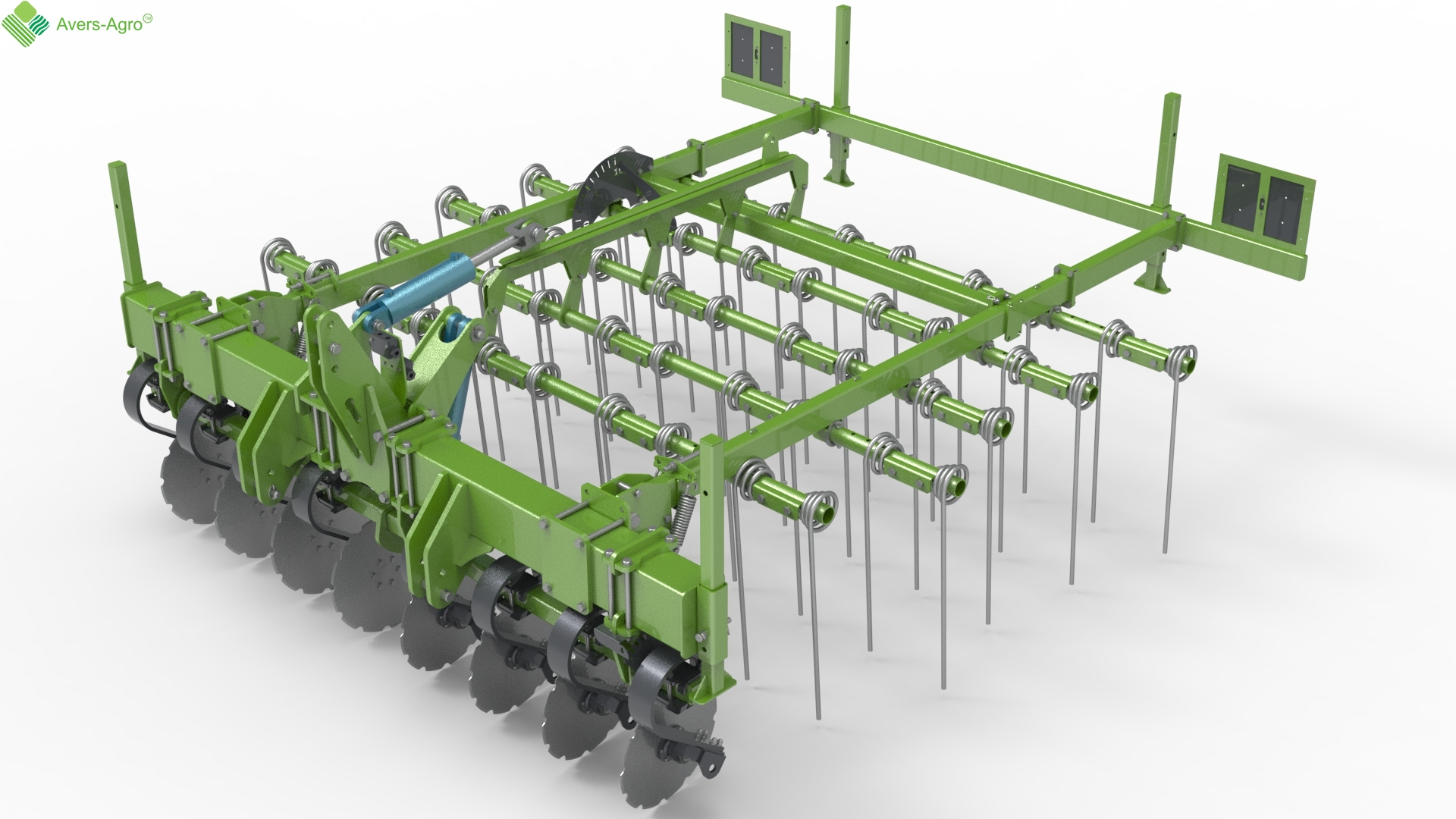

Spring harrow heavy Green Ray 3 m WTD
Spring harrow heavy Green Ray 3 m WTD
contact us by phone:
The harrow is designed for weed control, crust breaking, field surface loosening, uniform distribution of chopped straw and partial incorporation of crop residues (preservation of nitrogen in the soil), reduction of soil erosion, preservation of soil moisture, preparation of soil for sowing.
|
Indicator |
Value |
|
3WTD |
|
|
Working width, m: |
3,15 |
|
Working length, m: |
3,5 |
|
Length during transportation, m: |
3,5 |
|
Height during transportation, m: |
1,4 |
|
Width during transportation, m: |
3,15 |
|
Total weight, t: |
1,03 |
|
Number of sections with scrapers, pcs: |
1 |
|
Number of scrapers, pcs: |
25 |
|
Distance between scrapers in a row, m: |
0,63 |
|
Number of rows with scrapers per section, pcs: |
5 |
|
Distance between single spring tines of the harrow, m: |
0,063 |
|
Depth of processing, mm: |
0-80 |
|
Angle adjustment of the scraper teeth attack |
Hydraulic stepless |
|
Number of turbo disks, pcs: |
8 |
|
Diameter of turbo disks, mm: |
440 |
|
Spacing of turbo disks, m: |
0,34 |
|
Tractor hitch |
Mounted KAT2 |
|
Hydraulic requirement |
|
|
Scraper angle adjustment |
1 spool |
|
Adjustment of the discs working depth |
1 spool |
|
Hydraulic system pressure, bar: |
180 |
|
Minimum tractive power of the tractor, h.p.: |
90 |
|
Recommendation for deep processing, h.p.: |
130 |
|
Number of attendants, people: |
1 |
