Harrow rotary Green Star 16 m trailing with solid tools
En
aversagro@gmail.com

Harrow rotary Green Star 16 m trailing with solid tools

In stock
Article: 10232

Harrow rotary Green Star 16 m trailing with solid tools

In stock
Article: 10232
Harrow rotary Green Star 16 m trailing with a solid tools, it is aggregated with tractors up to 230 HP, working width: 16 m.
The type of aggregation
Trailing
Power tractor
not less than 230 hp
1 грн
1 грн
Потрібна консультація?
Зв’яжіться з нами зручним способом

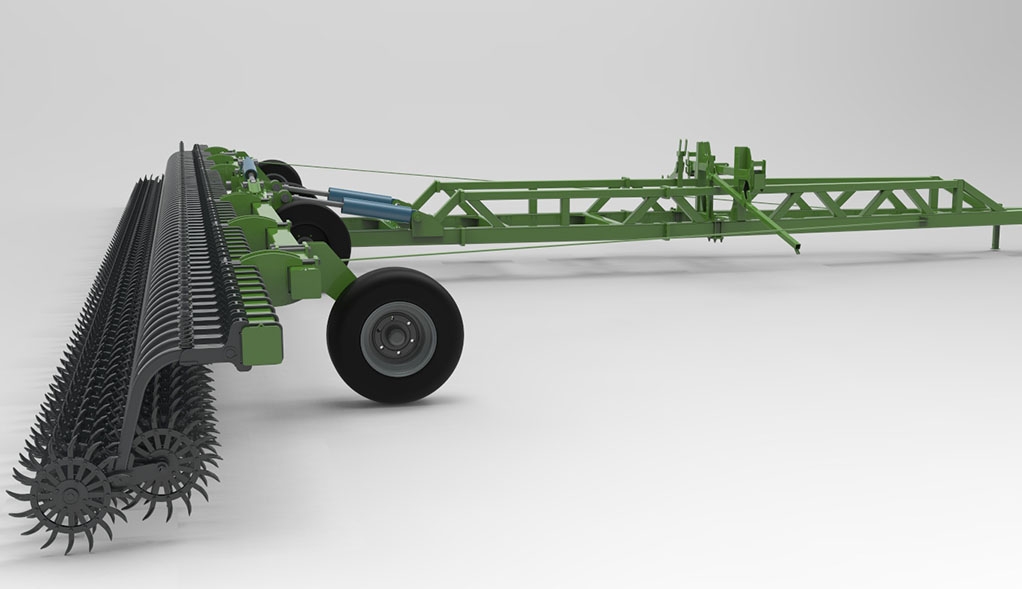

Consists of two solid beams with the working bodies. The beams are mounted on a special frame, equipped  with transport wheels and hydraulic cylinders.

Frame Design ensures quick set harrows from transport to working position and Vice versa.

The rotary harrow 16 m trailed with whole working bodies:

Advantages and design features of the Green Star 16 m rotary harrow trailed with integral working bodies:

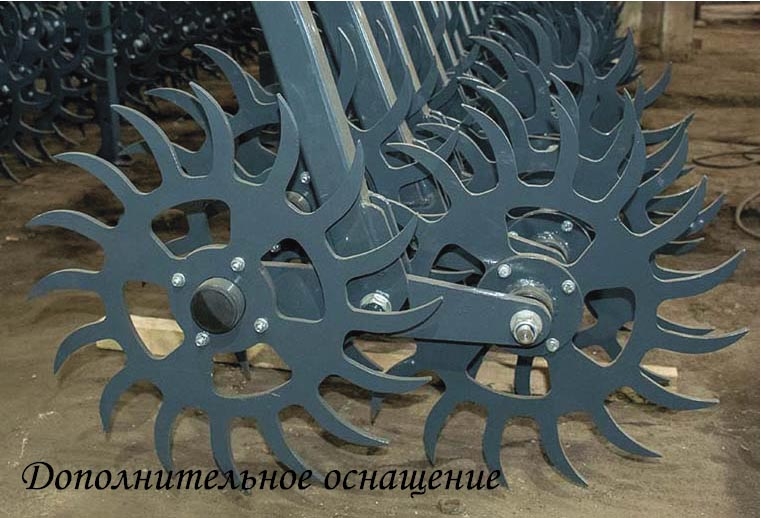

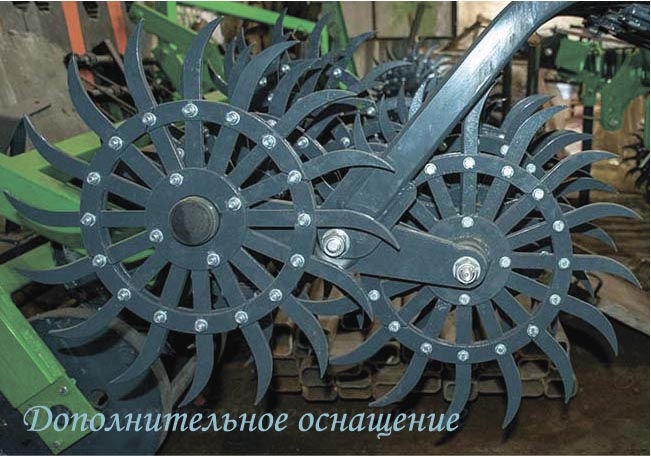

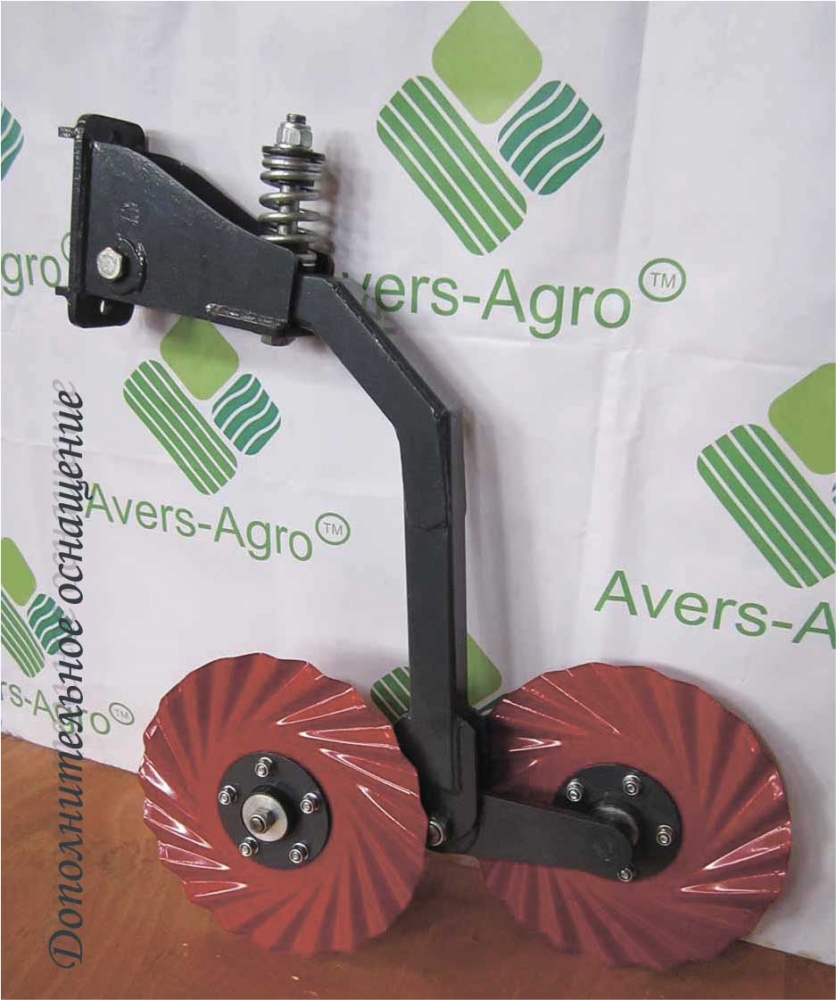

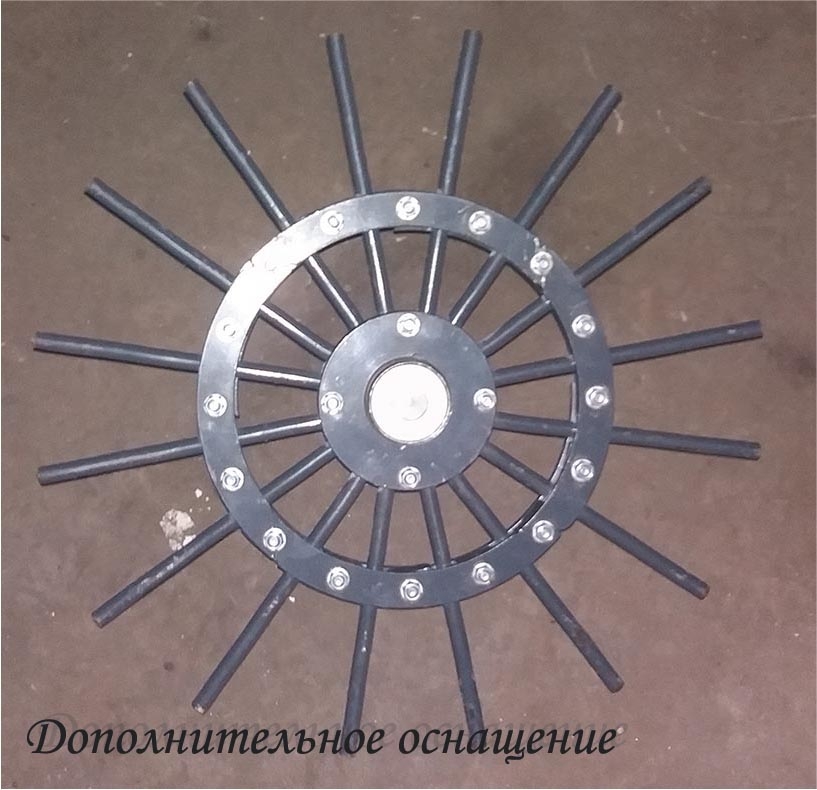

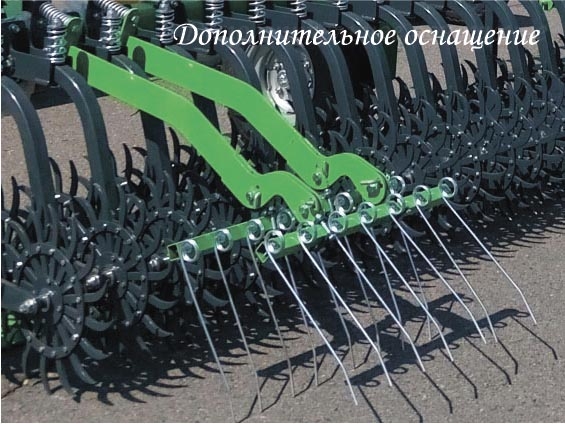

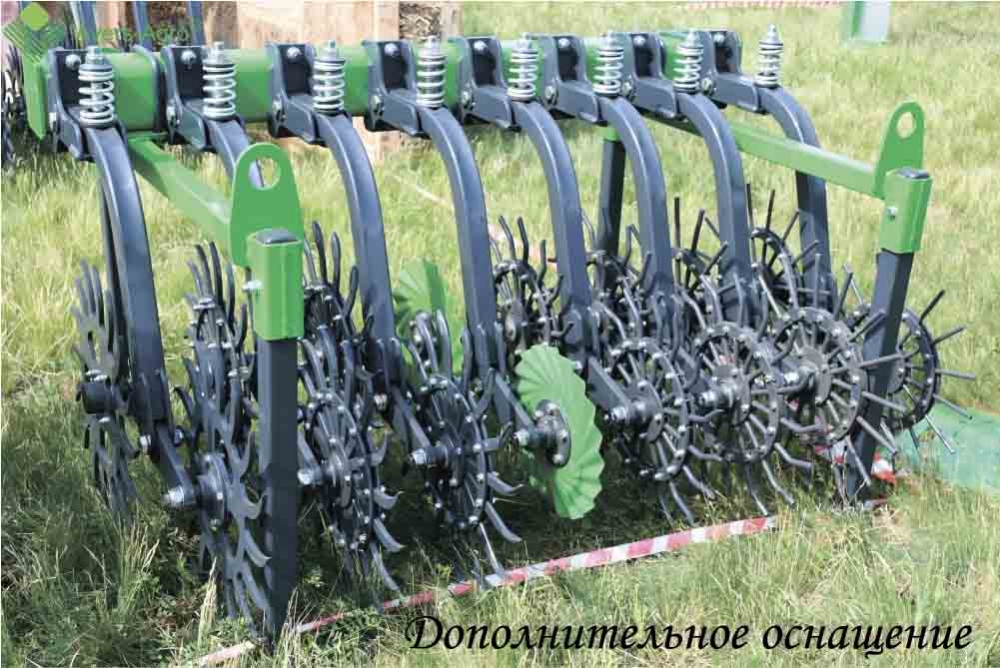

Additional equipment:

       Specifications
working speed, km/h .................. 15-20
working width of capture, m ........... 16
Performance, ha/h ............... 24-32
Depth of processing, mm ................... 30-70
Sections of the working bodies, PCs ........... 72
Working bodies, PCs ........................ 144
Step of working bodies , mm ............... 110
Weight of one section kg
           - with portable wheels ..... 38
           - with integral wheel ............. 34
Max pressure
of oil in the hydraulic system, bar .............. 180
     dimensions in working position:
Width, mm ...................................... 16000
Length, mm ......................................... 10100
Height, mm ........................................ 1200
    overall dimensions in transport  position:
Width, mm ....................................... 3200
Length, mm .......................................... 8900
Height, mm ........................................ 2400
Mass of unit, kg
           - with portable wheels ...... 5800
           - solid wheel .............. 5500
is Aggregated with tractors of class from 230 HP
staff, people ........ 1 (tractor)
Method of aggregation - for point-to-point hitch
