Seeder disc-anchor Green Plains TSM PRO 3.5
In stock
Article: 10507
Compensation up to 40%
Seeder disc-anchor Green Plains TSM PRO 3.5
In stock
Article: 10507

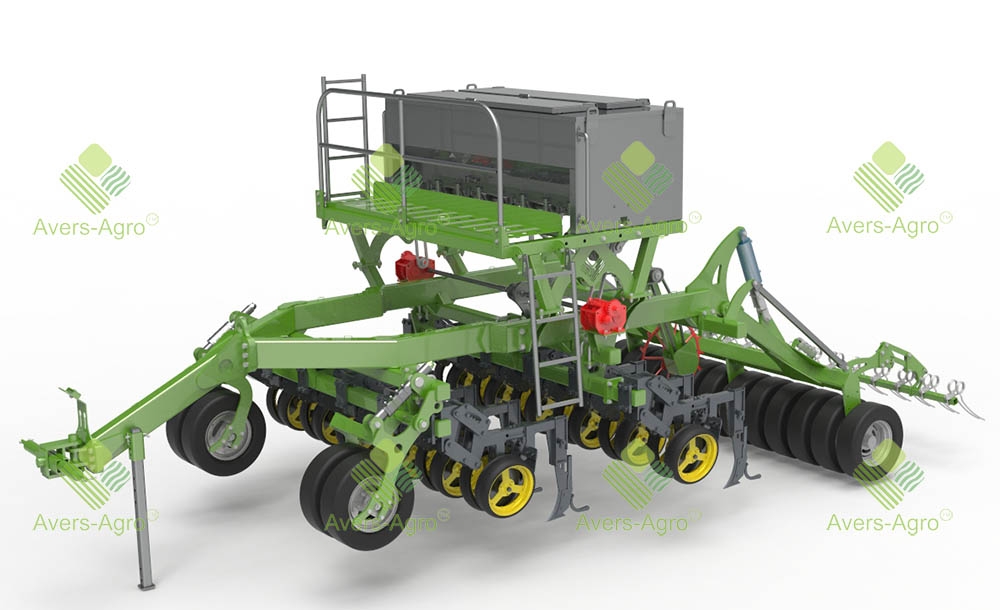

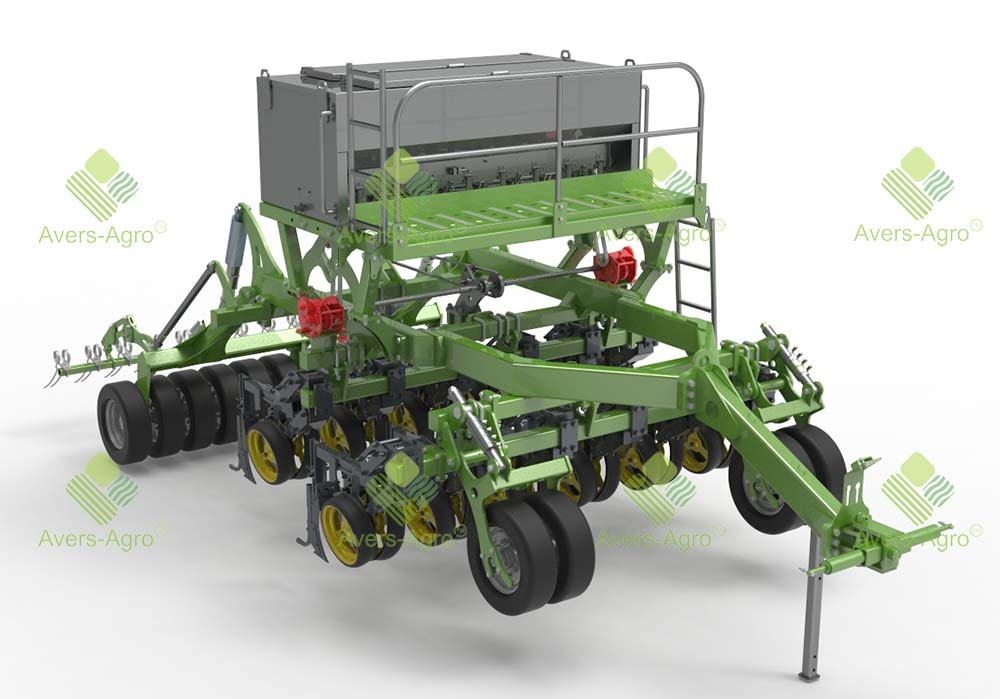

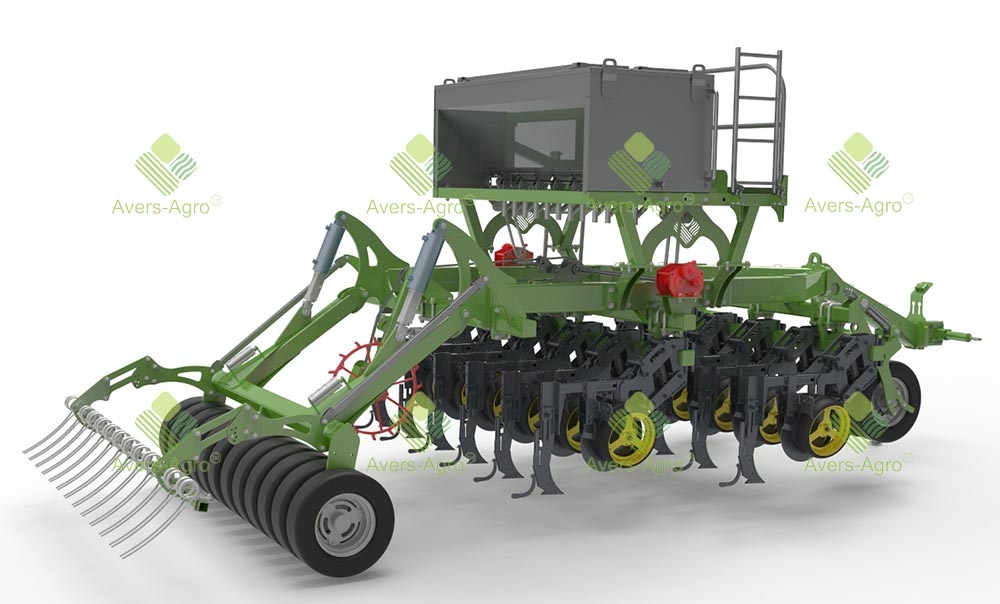

Green Plains TSM PRO mechanical grain-anchor seed drill with a working width of 3.5 m.
The type of aggregation
Semi-mounted
Power tractor
not less than 89 hp
1 384 100 грн
1 258 300 грн
For more information
contact us by phone:
contact us by phone:
Recommendations:
Direct seeder grain seeder, mechanical semi-mounted Green Plains TSM PRO with a working width of 3.5 m.
Designed for direct sowing of grain of all types, as well as for work on the classic technology, mini-till and no-till.
Technical characteristics of the seeder Green Plains TSM PRO 3.5 m:
Type ... mechanical
Aggregation method ... semi-mounted
Productivity at a speed of 10 km / h, ha / h ... 3.5
Transport height, m ... 3
Transport width, m ... 3.65
Transport length, m ... 7.05
Working width, m ... 3.5
Seeder weight (unloaded), t ... 3.9
Number of coulters, pcs ... 14
Number of rows of coulters, pcs ... 2
Distance between coulters, mm ... 250
Required tractor power, hp ... 89
Working speed, km / h ... 7-10
Transport speed, km / h ... 20
The minimum number of pairs of tractor hydraulic outlets, pcs ... 1
Tractor hydraulic pressure, bar ... 180
Hopper capacity 60/40:
Seeds, l ... 480
Fertilizers, l ... 320
Application rate:
Seed min / max, kg / ha ... 50/300
Fertilizers min / max, kg / ha ... 50/300
Depth of seed / fertilizer application, mm ... 20-100
Aggregation method ... semi-mounted
Productivity at a speed of 10 km / h, ha / h ... 3.5
Transport height, m ... 3
Transport width, m ... 3.65
Transport length, m ... 7.05
Working width, m ... 3.5
Seeder weight (unloaded), t ... 3.9
Number of coulters, pcs ... 14
Number of rows of coulters, pcs ... 2
Distance between coulters, mm ... 250
Required tractor power, hp ... 89
Working speed, km / h ... 7-10
Transport speed, km / h ... 20
The minimum number of pairs of tractor hydraulic outlets, pcs ... 1
Tractor hydraulic pressure, bar ... 180
Hopper capacity 60/40:
Seeds, l ... 480
Fertilizers, l ... 320
Application rate:
Seed min / max, kg / ha ... 50/300
Fertilizers min / max, kg / ha ... 50/300
Depth of seed / fertilizer application, mm ... 20-100
It is equipped with a unique disk-anchor opener of its own design with a seedband width of 14 mm.
Designed for use in direct seeders, as well as for work on the technology of mini-till and no-till.
The coulter is equipped with a cutting disc that cuts crop residues and plant roots located in the surface soil layer.
Support wheels are installed next to the cutting disk, which, in addition to copying the field microrelief, press the crop residues, facilitating their cutting, and compact the soil surface, which allows the anchor to prepare a neat groove with less soil loosening.
Following the anchor, there is a plastic seed and fertilizer compactor, which tightly presses the seeds to the bottom of the groove, ensuring their guaranteed contact with moist soil.
The coulter is equipped with a cutting disc that cuts crop residues and plant roots located in the surface soil layer.
Support wheels are installed next to the cutting disk, which, in addition to copying the field microrelief, press the crop residues, facilitating their cutting, and compact the soil surface, which allows the anchor to prepare a neat groove with less soil loosening.
Following the anchor, there is a plastic seed and fertilizer compactor, which tightly presses the seeds to the bottom of the groove, ensuring their guaranteed contact with moist soil.
