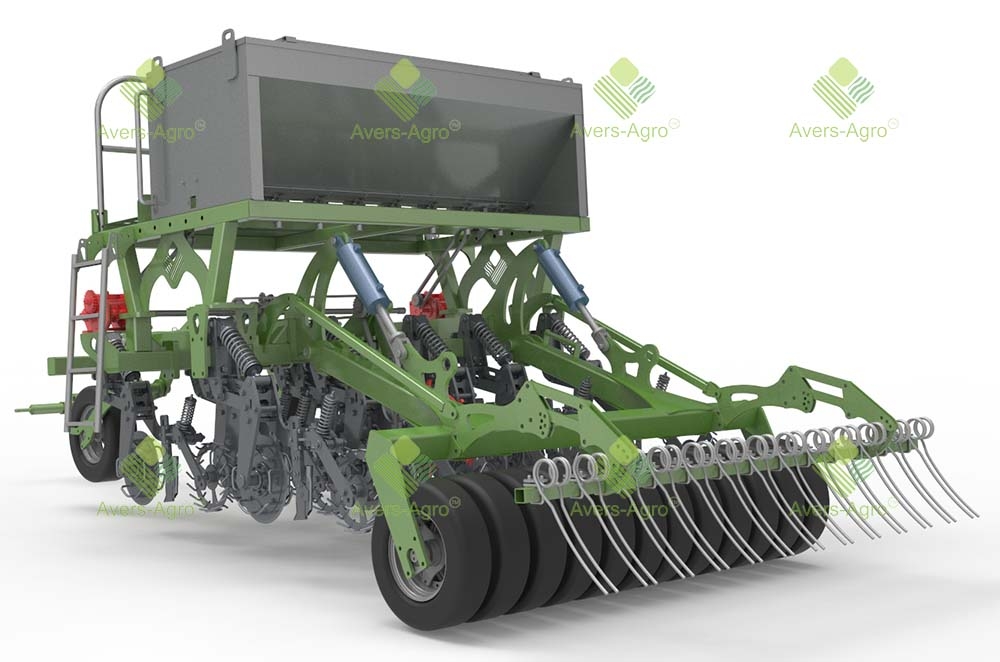

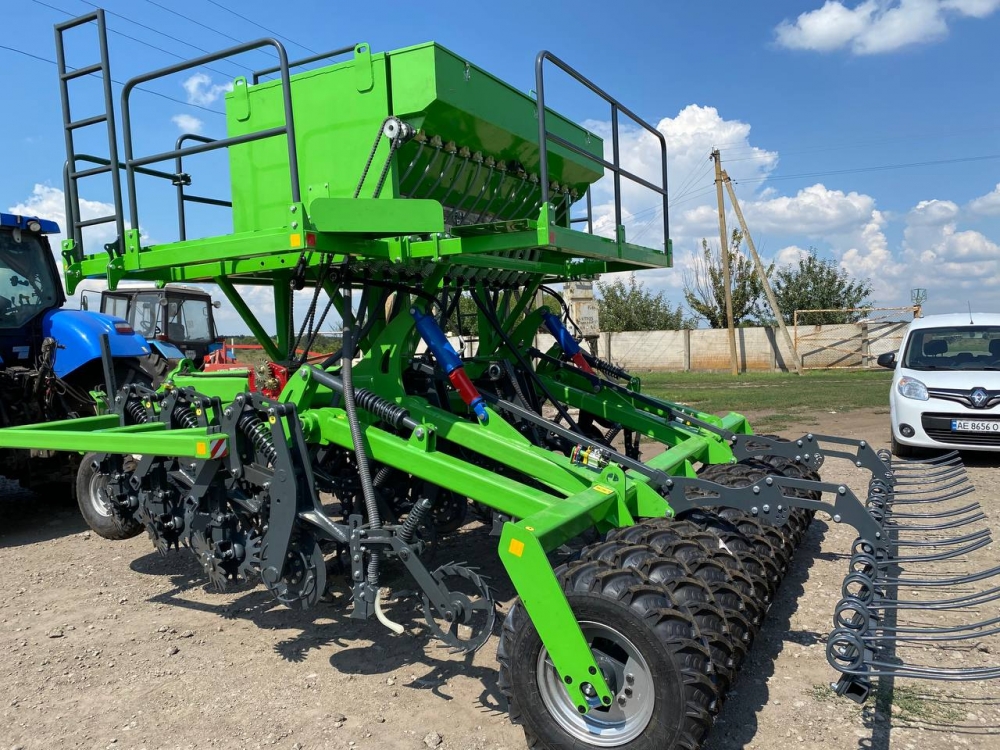

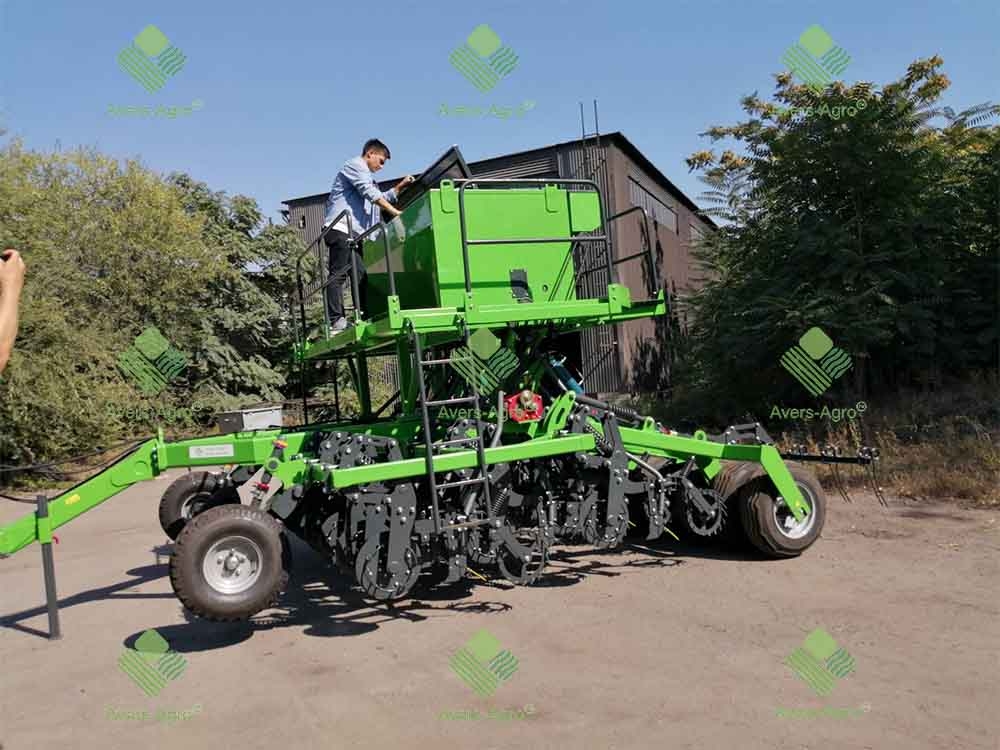

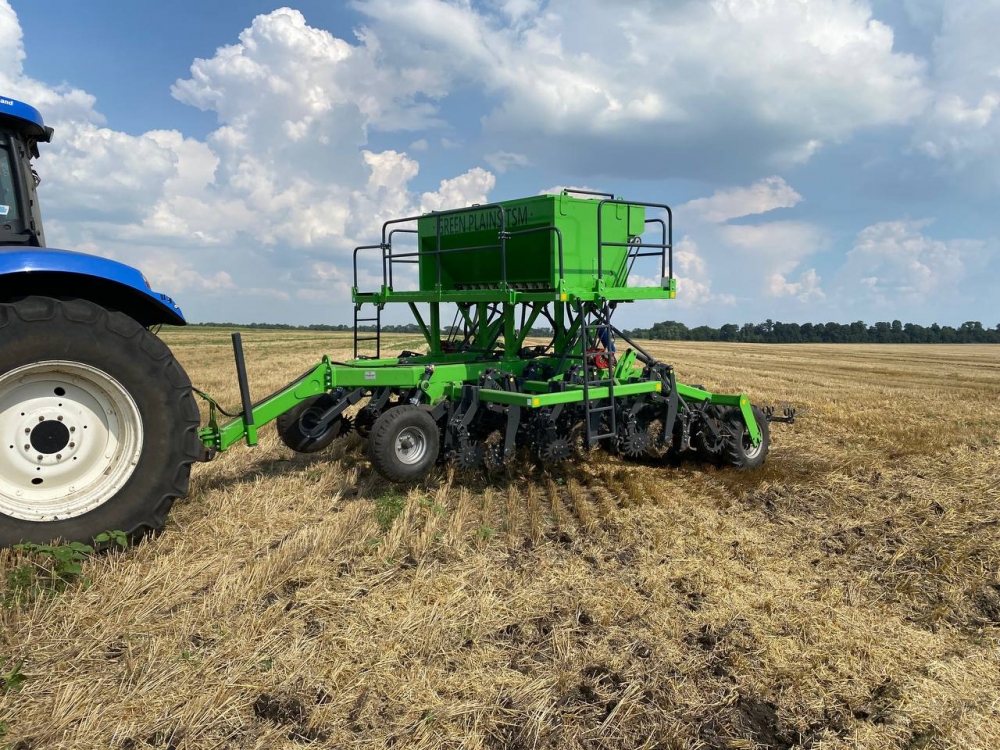

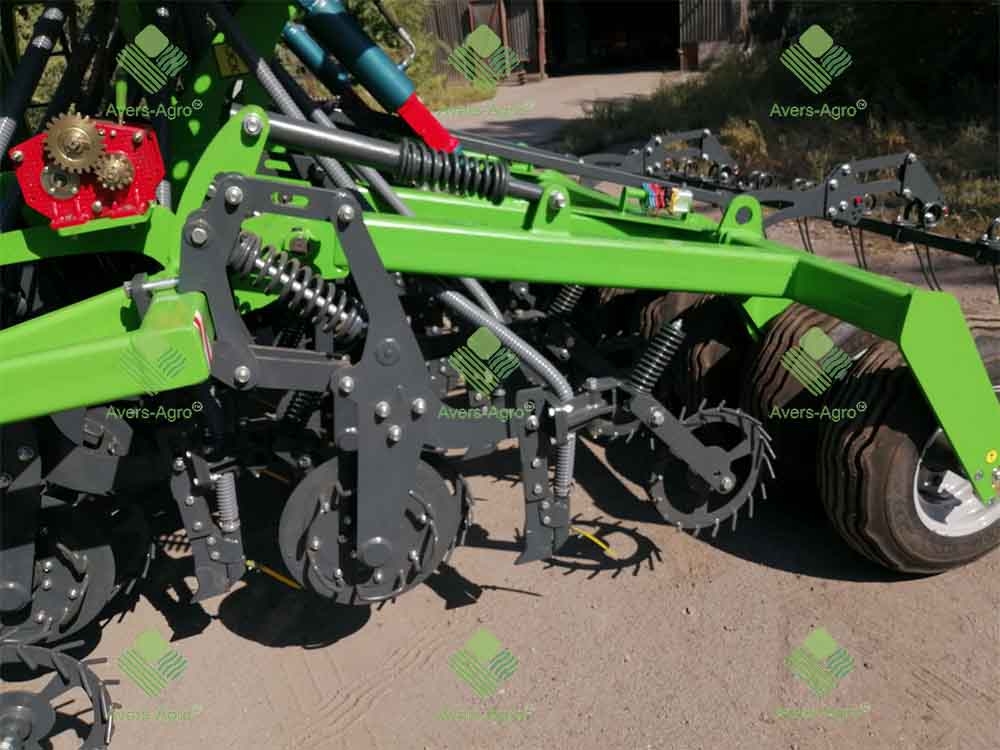

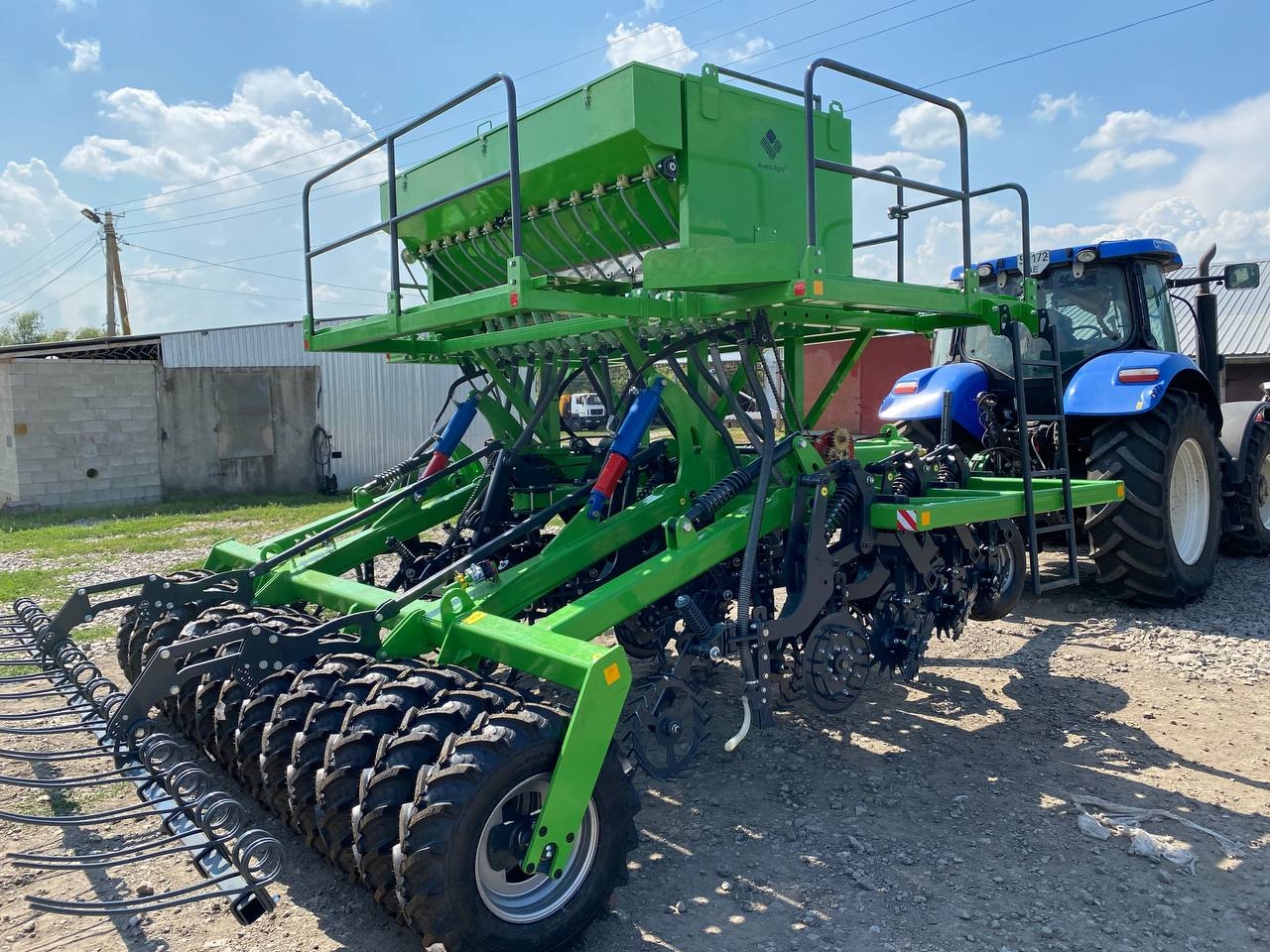

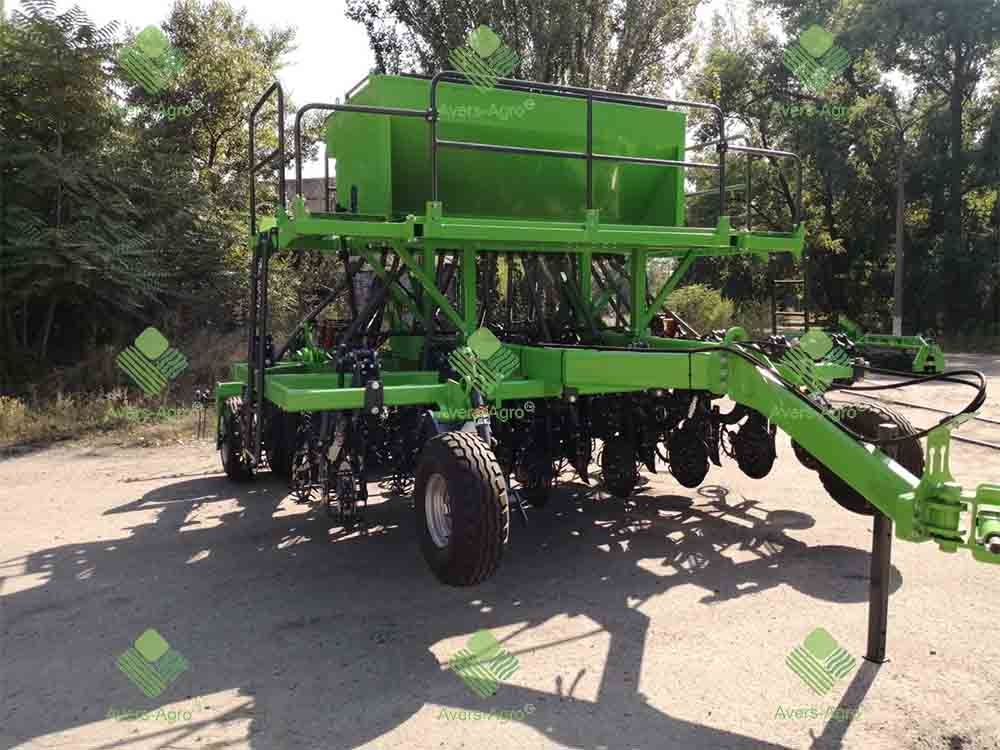

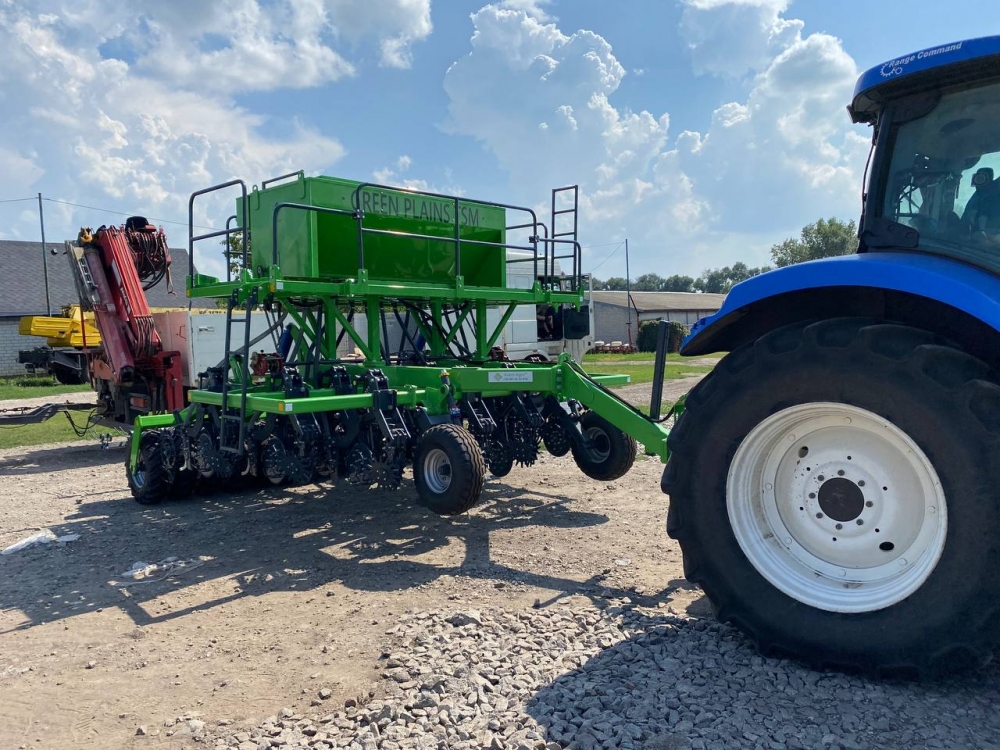

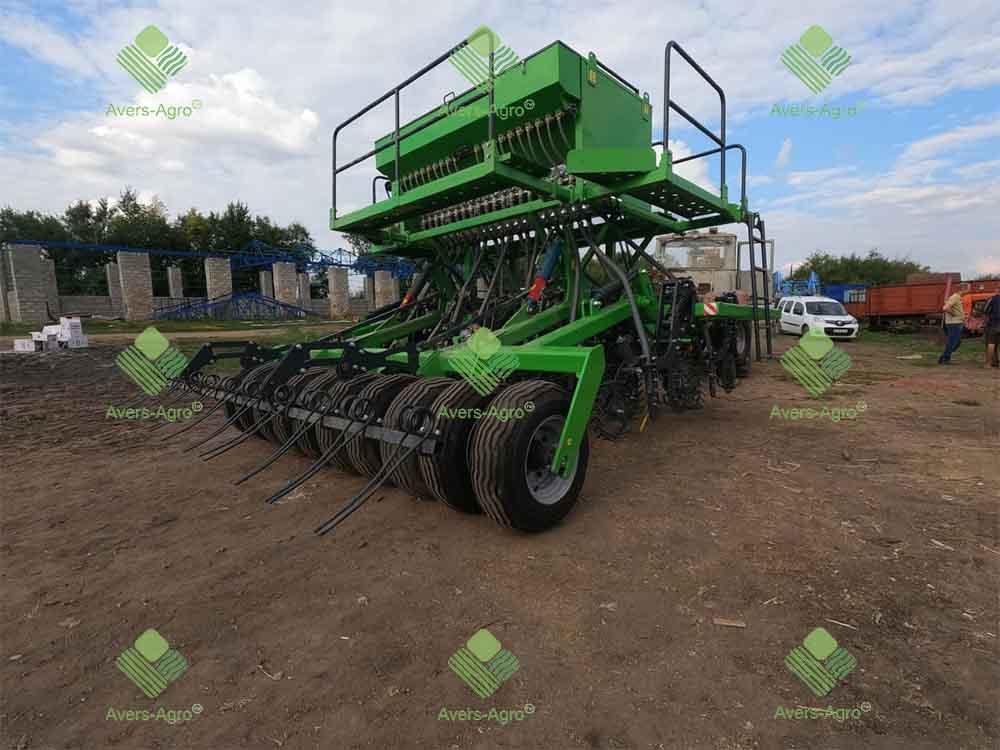

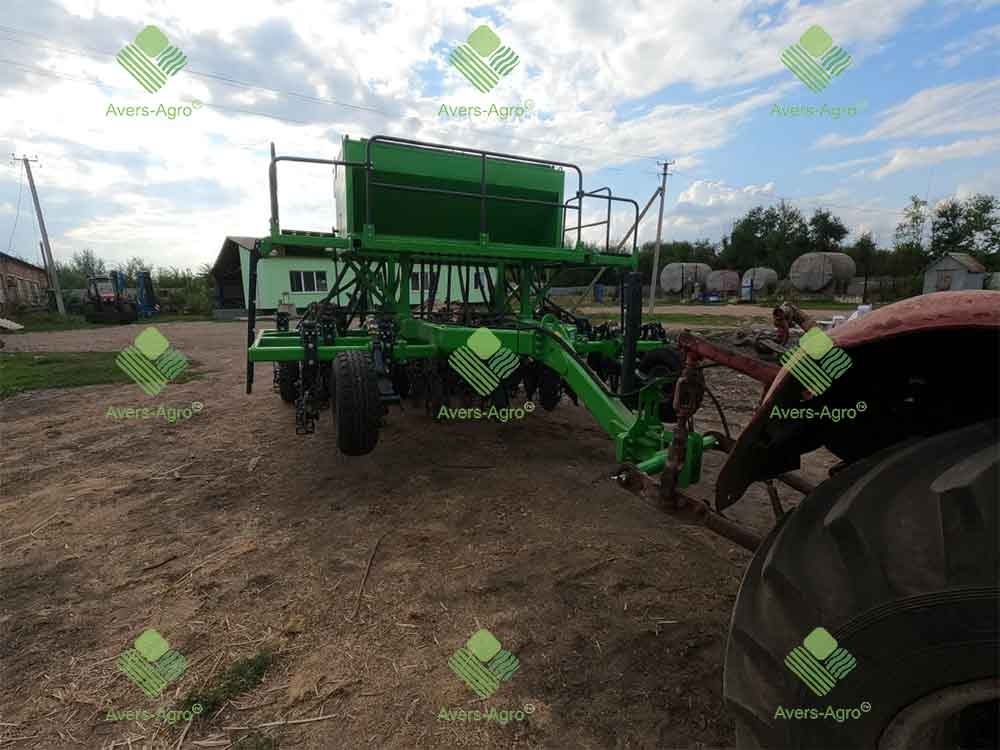

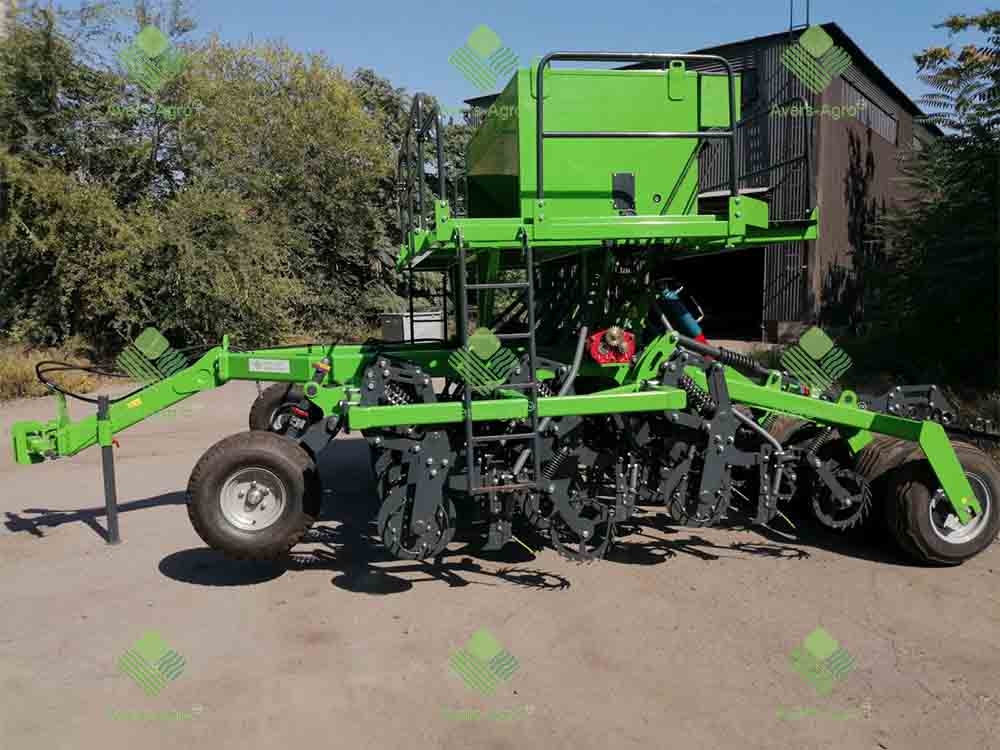

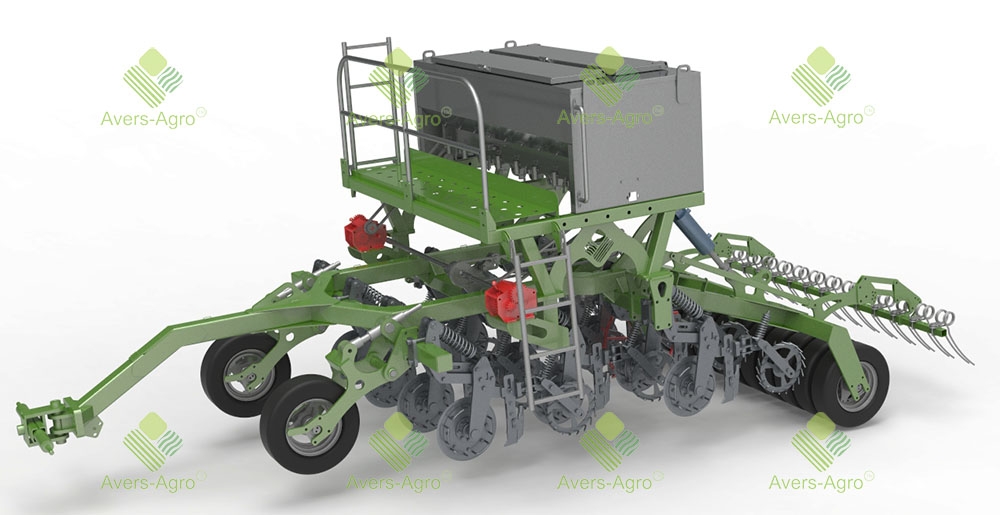

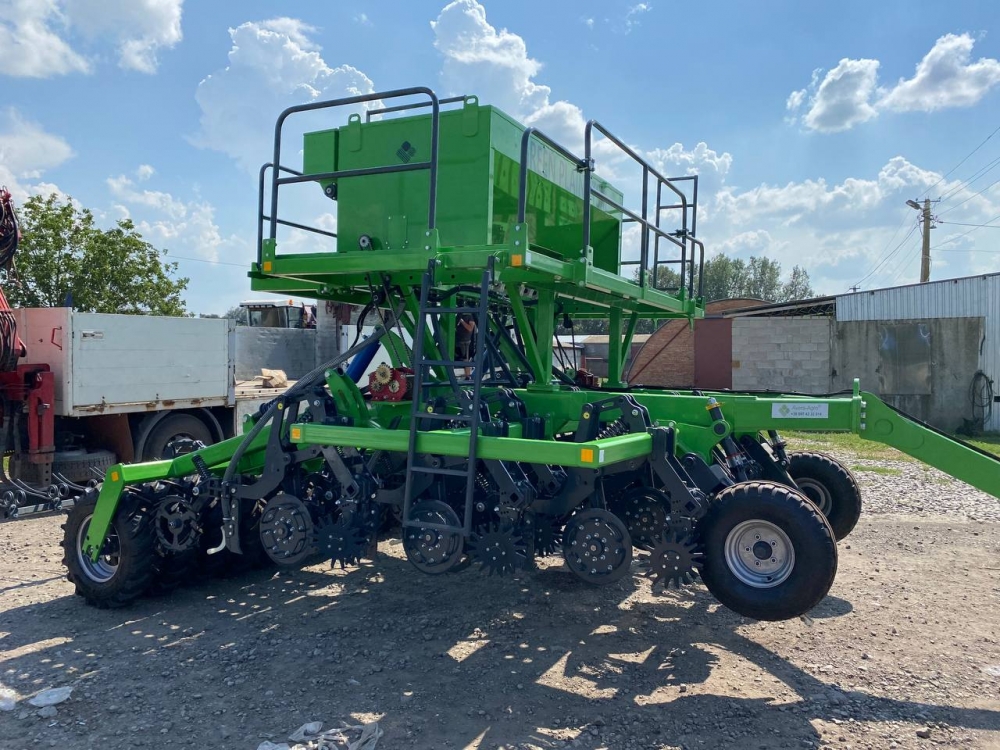

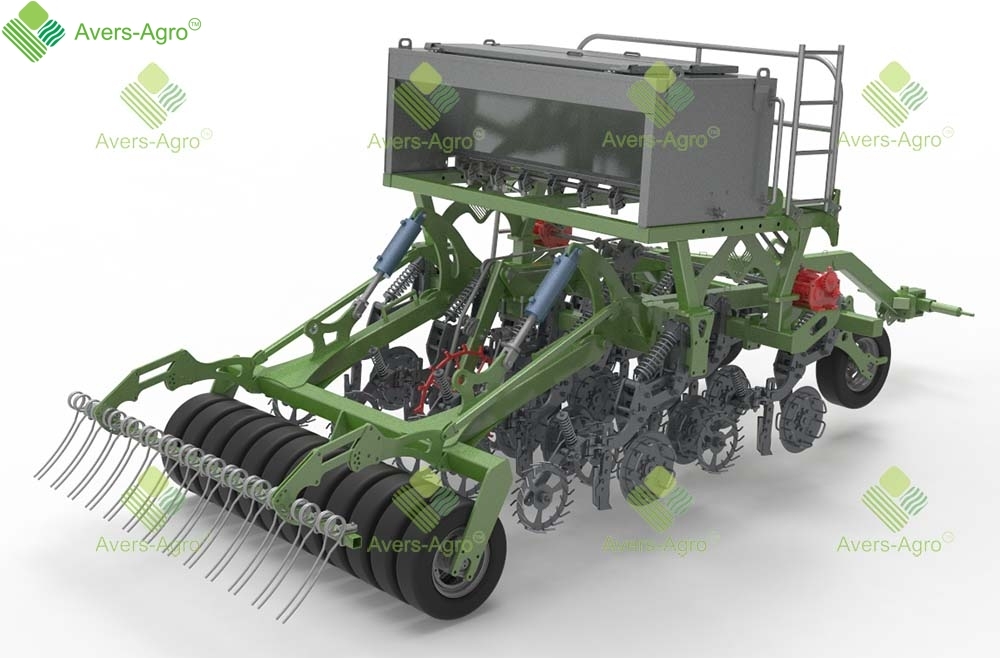

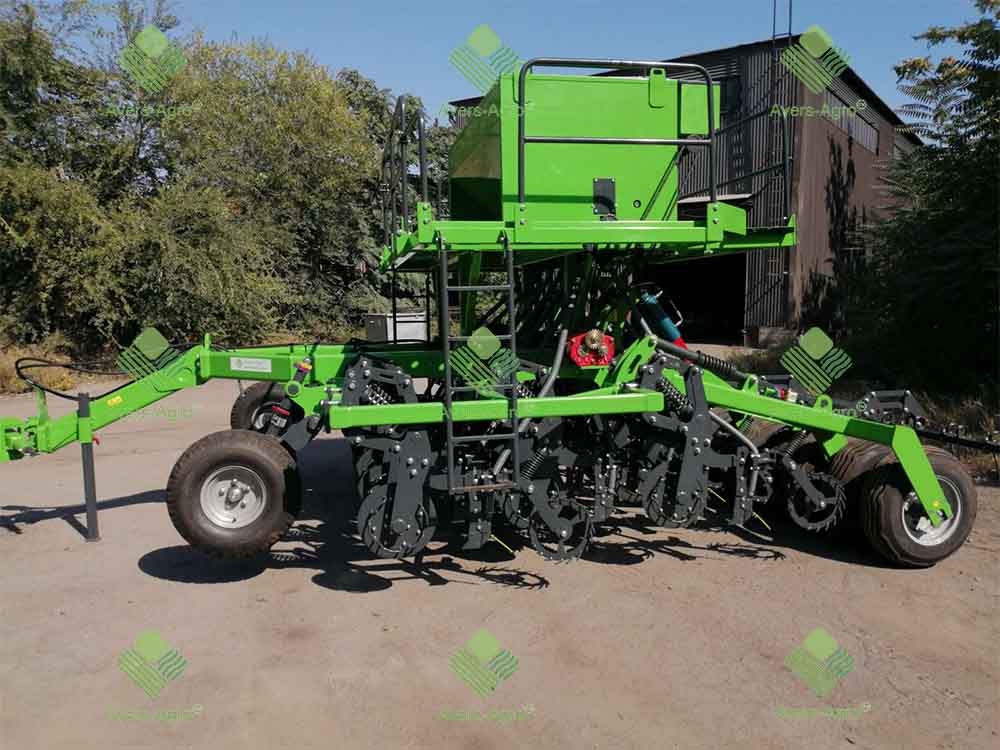

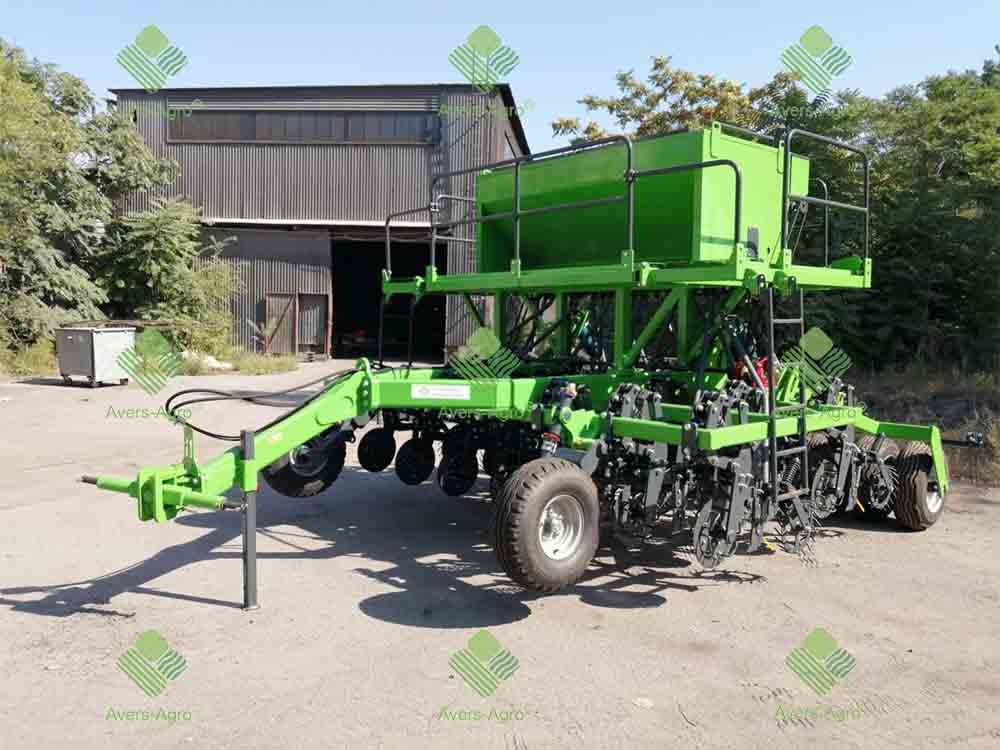

Green Plains TSM direct seeder with 3.9 m working width.

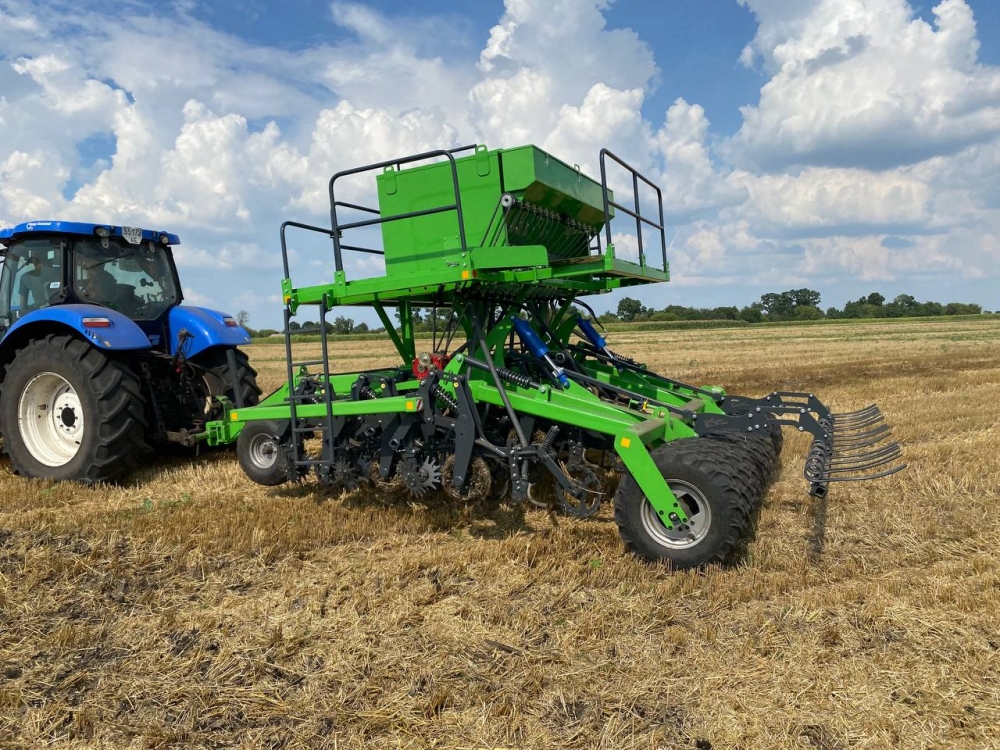

Video of work in the field

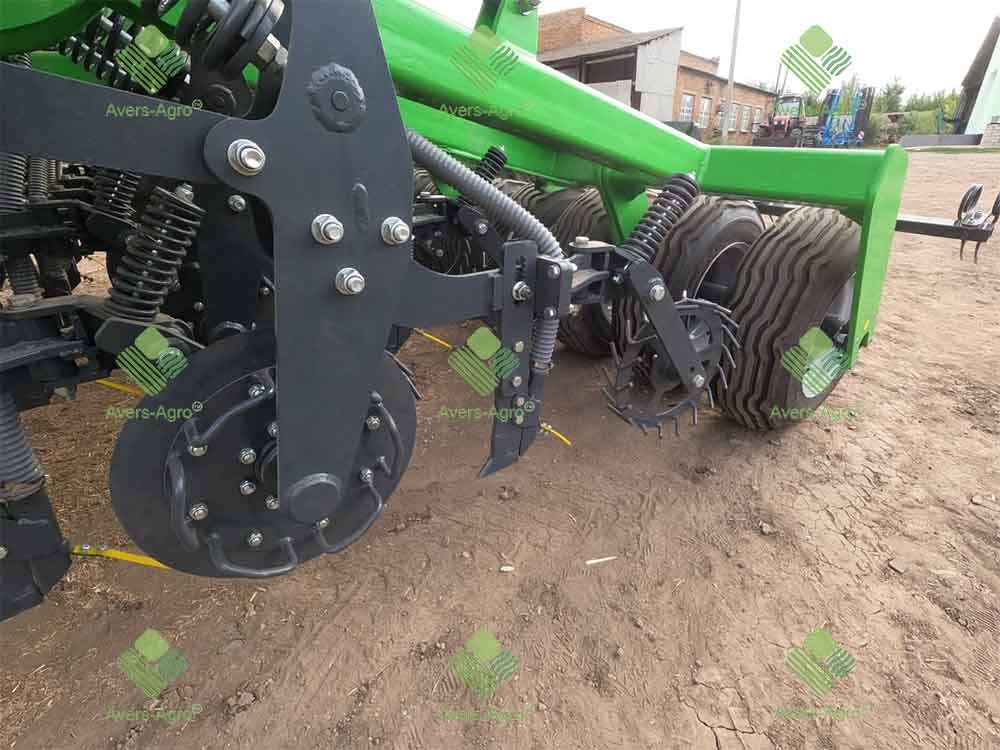

Designed for simultaneous sowing of various crops: cereals, small seeds, row crops, as well as cultivation and fertilizing in one pass. Works well on wet soil. Excellent sowing performance with classic, minimal and zero technology. Cuts plant debris preventing them from falling into the sowing bed.
Advantages of the Green Plains TSM 3.9 m disc-anchor seeder:
- convenient and easy to operate;
- increased reliability and durability of nodes and the unit as a whole;
- minimal damage to the surface soil layer;
- minimal stubble in the seed well;
- precise and uniform sowing to the desired depth, even for a large number of crop residues;
- simple, precise and flexible adjustment of the metering unit.
Specifications:
Type ... mechanical
Aggregation method ... semi-mounted
Productivity at a speed of 8 km / h, ha / h ... 3.1
Transport height, m ... 3.36
Transport width, m ... 4.05
Transport length, m ... 6.65
Working width, m ... 3.9
Seeder weight (unloaded), t ... 5.1
Number of coulters, pcs ... 20
Number of rows of coulters, pcs ... 3
Distance between openers, mm ... 195
Required tractor power, hp ... 89
Working speed, km / h ... 7-10
Transport speed, km / h ... 20
The minimum number of pairs of tractor hydraulic outlets, pcs ... 1
Tractor hydraulic pressure, bar ... 180
Hopper capacity 60/40: 1500
Seeds, l ... 1000
Fertilizers, l ... 500
Application rate:
Seed min / max, kg / ha ... 50/300
Fertilizers min / max, kg / ha ... 50/300
Depth of seed / fertilizer application, mm ... 20-100
