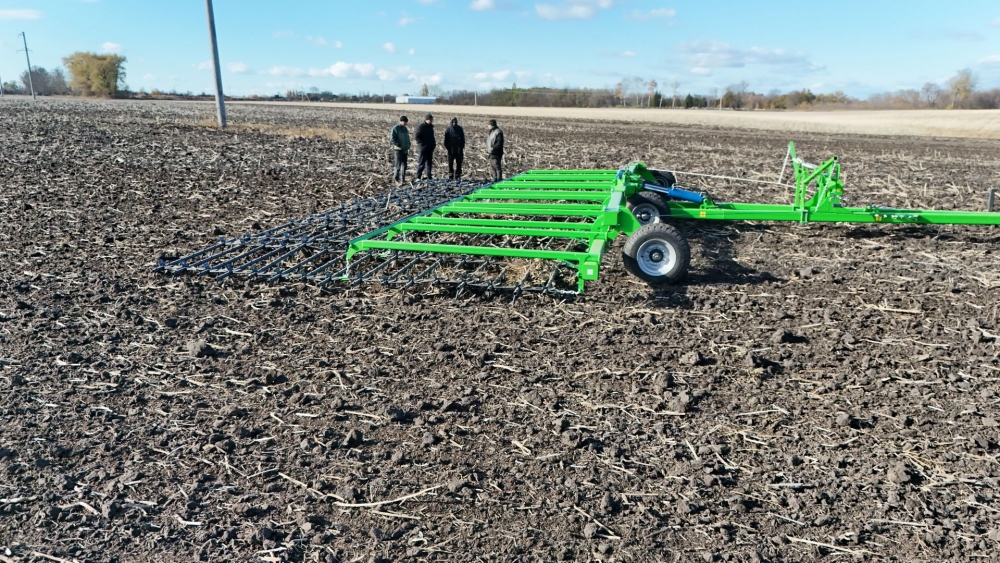

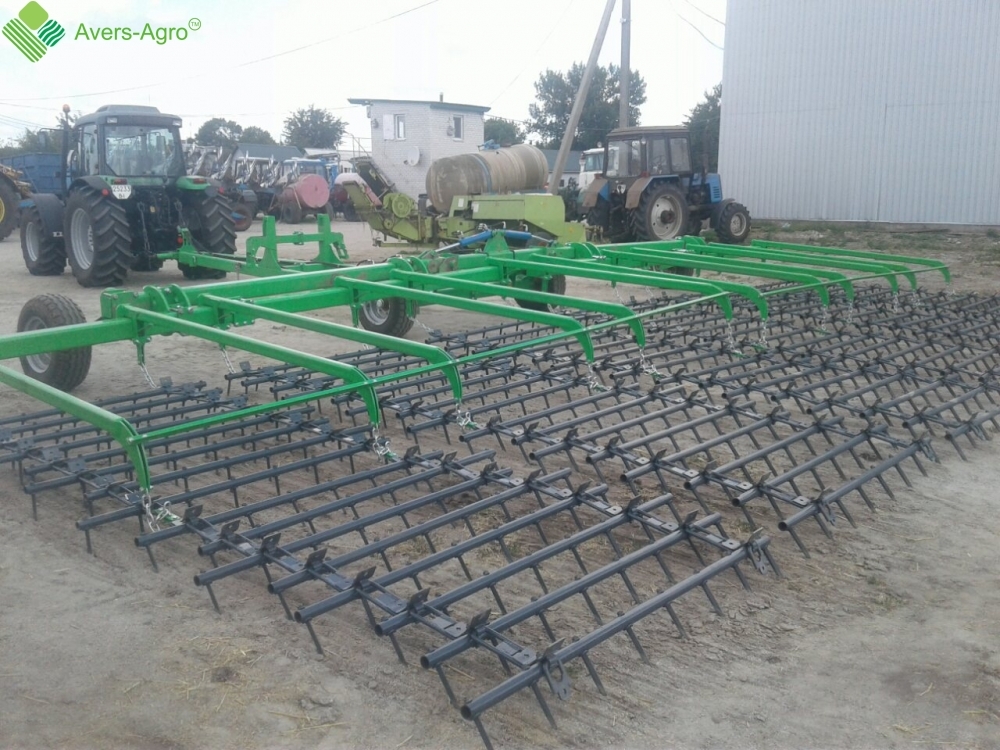

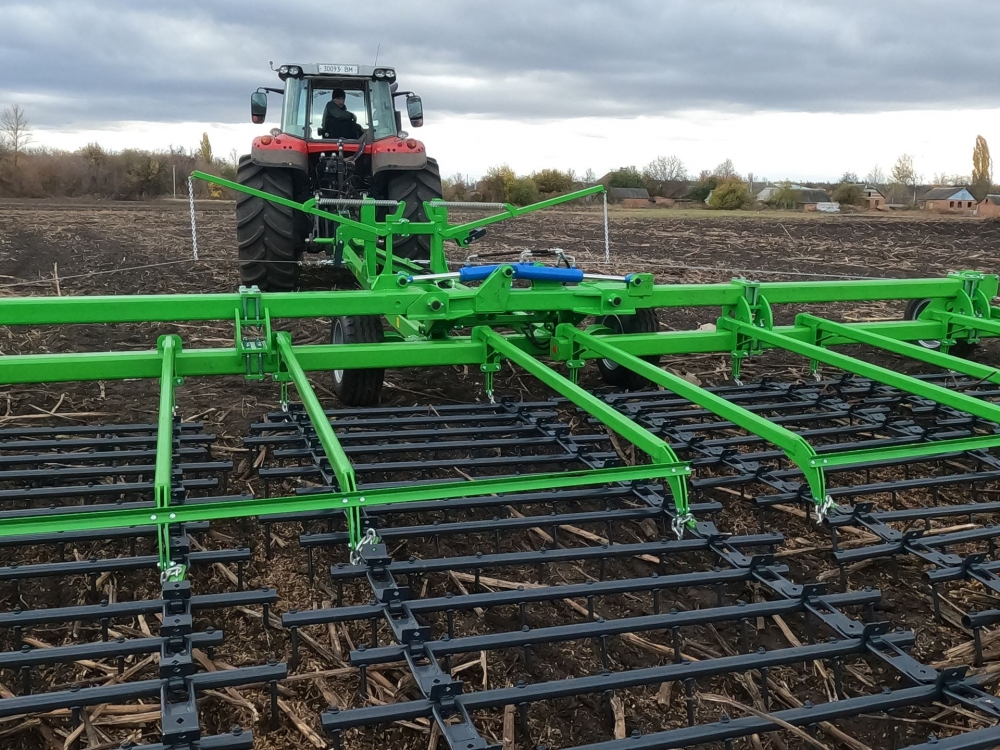

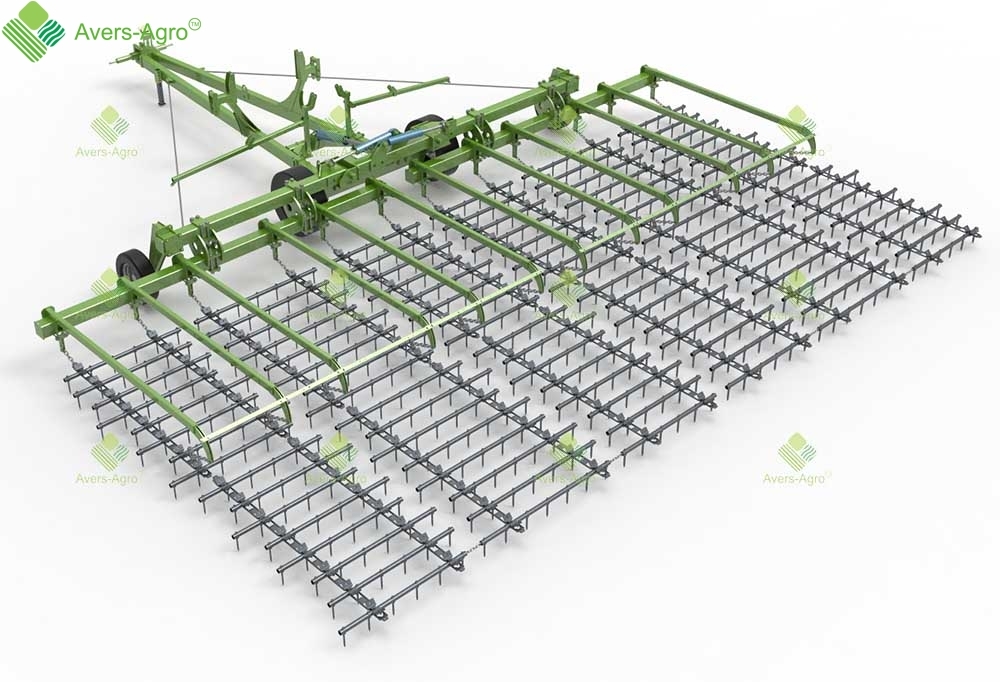

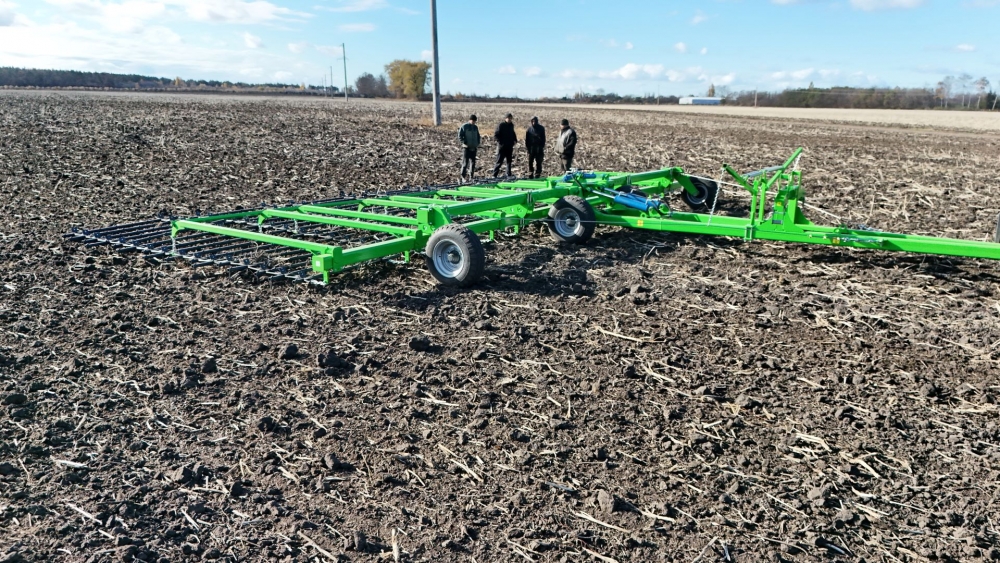

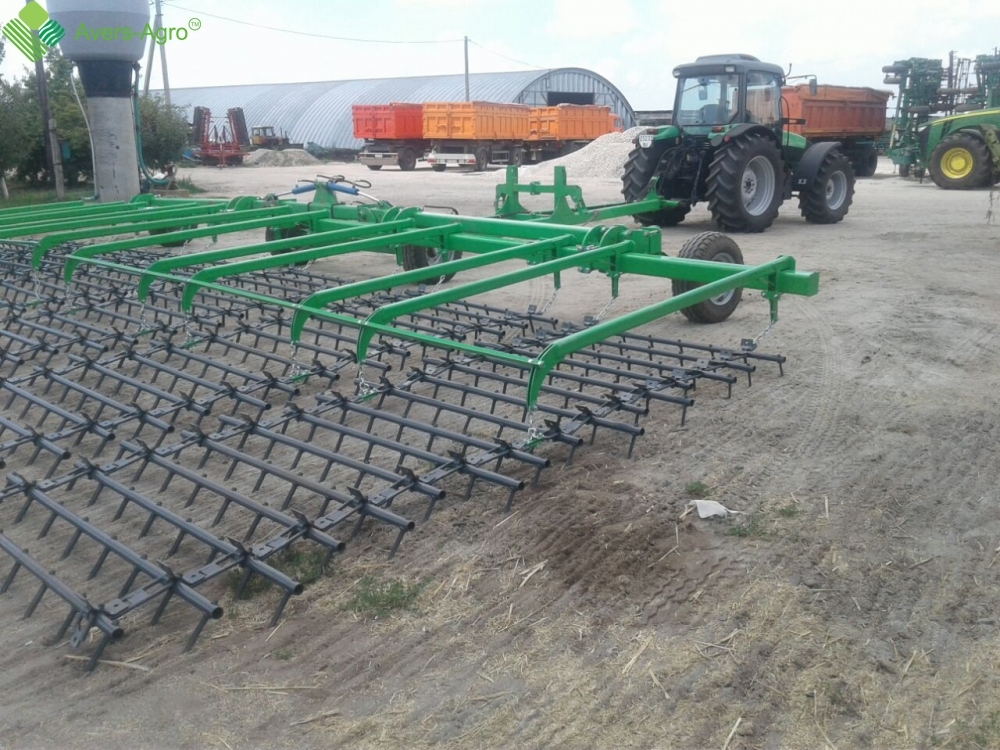

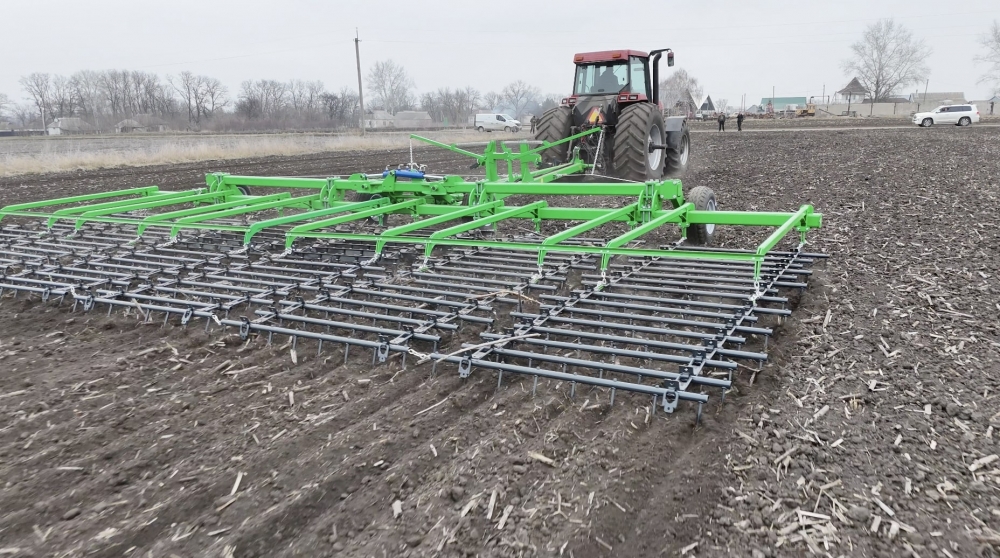

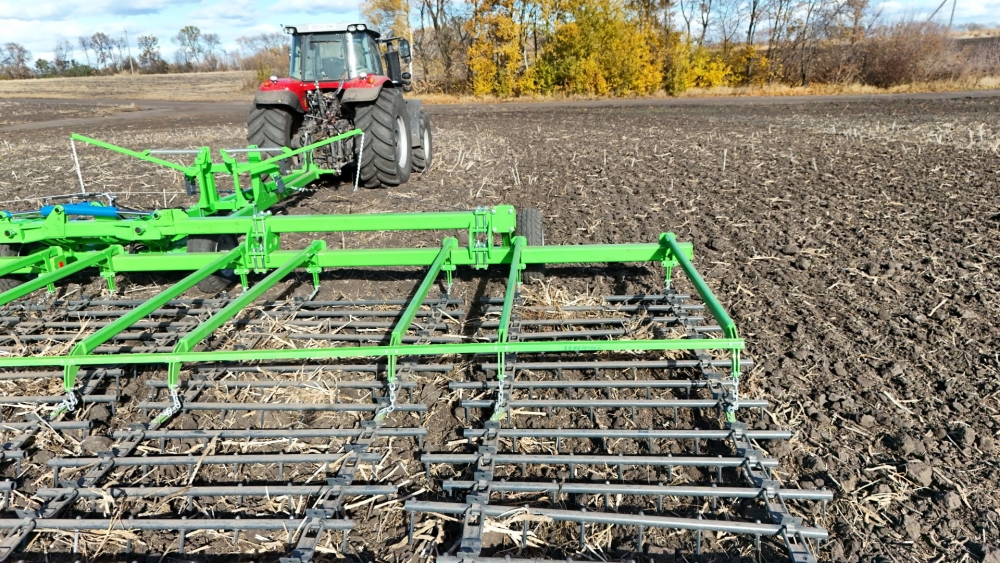

Used for finishing the field after disking or cultivating, seed bed preparation for different crops.
Design of the train allows you to go into the field early, as it is not so sensitive to soil moisture in a timely manner to produce work to close moisture and remove crusts.

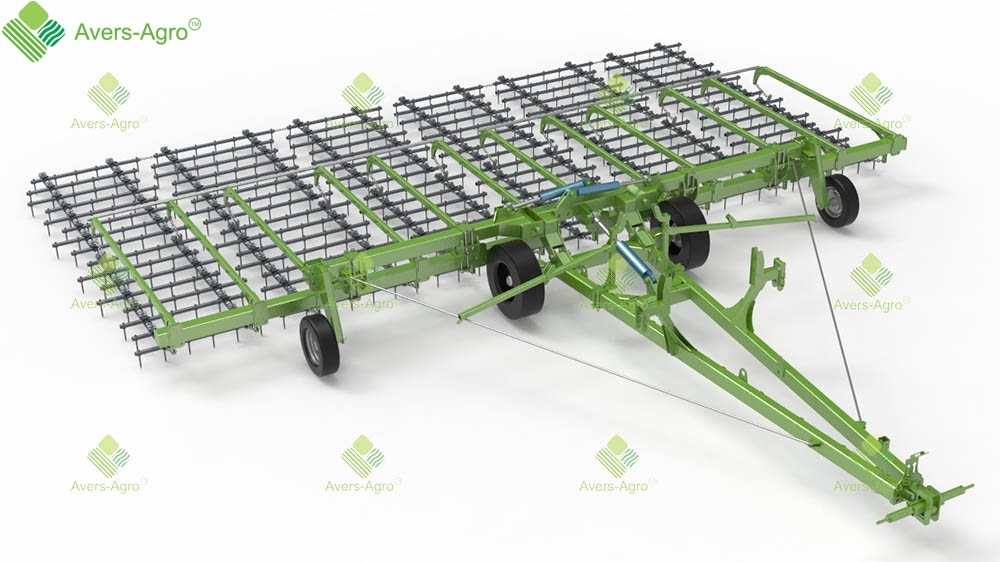

Hinged construction - cope with any amount of plant residues and evenly distributes field.
Reliable reinforced compact frame.

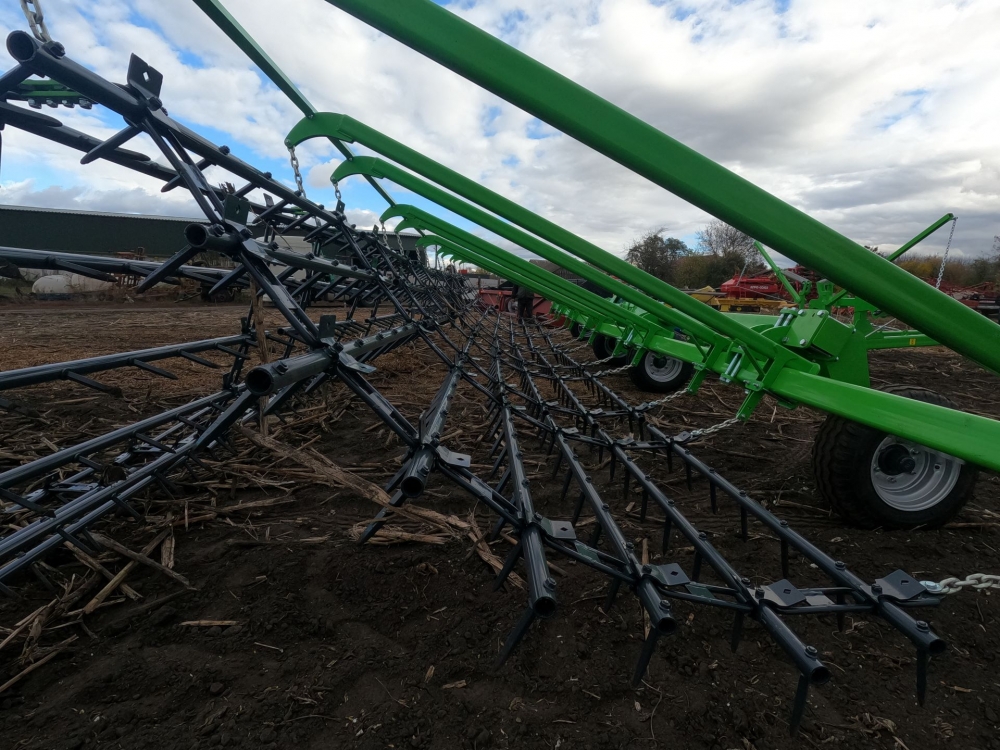

Daisy chain harrow consists of a set of consecutive knives.

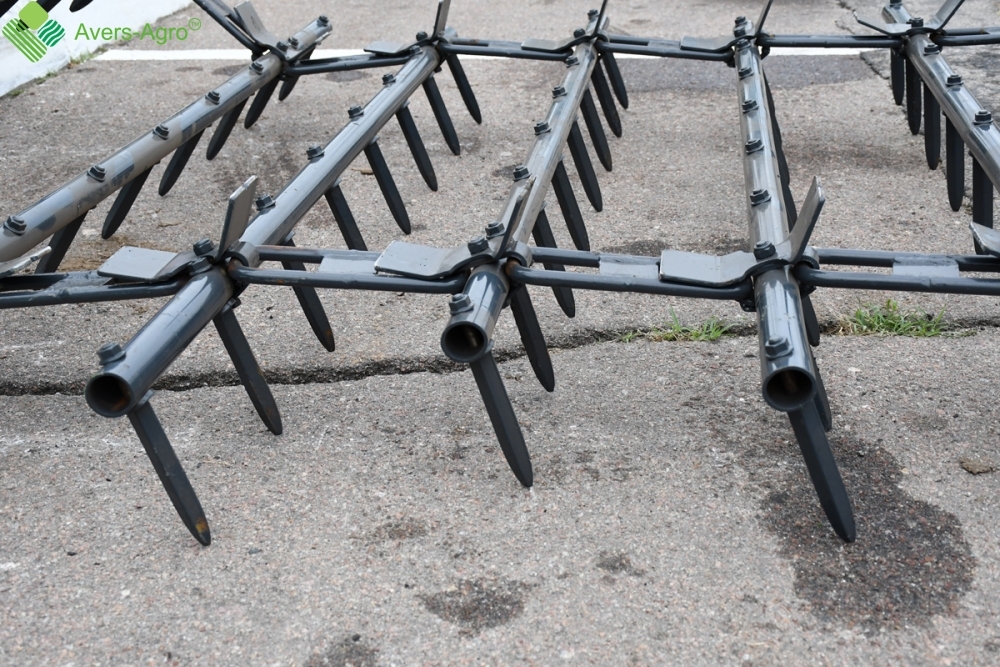

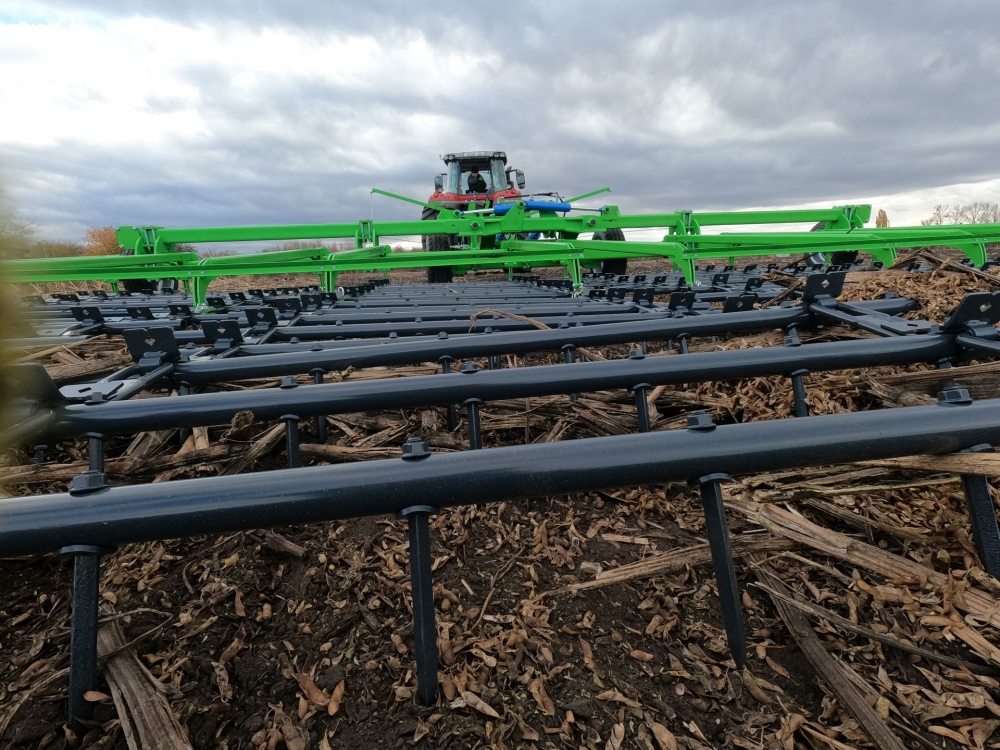

Working on - knife-like tooth rhombic cross-section, made of stainless steel.
Performance at a speed of 12km/h, hectare/h |
5,8-7,3 |
Working speed, km/h |
8-15 |
Transport speed, not more, km/h |
20 |
Working width, m |
9,12 |
Working length, m |
of 11.36 |
Mounting type |
trailing |
Depth of tillage, mm |
20-80 |
Number of loops, PCs |
4 |
Number of rows in the plume PCs |
8*2=16 |
Number of teeth standard piece |
608 |
Number of teeth on the length of 300mm, PCs |
20 |
Adjusting the angle of attack of the teeth (6 positions) |
38°, 50° plus 4 additional |

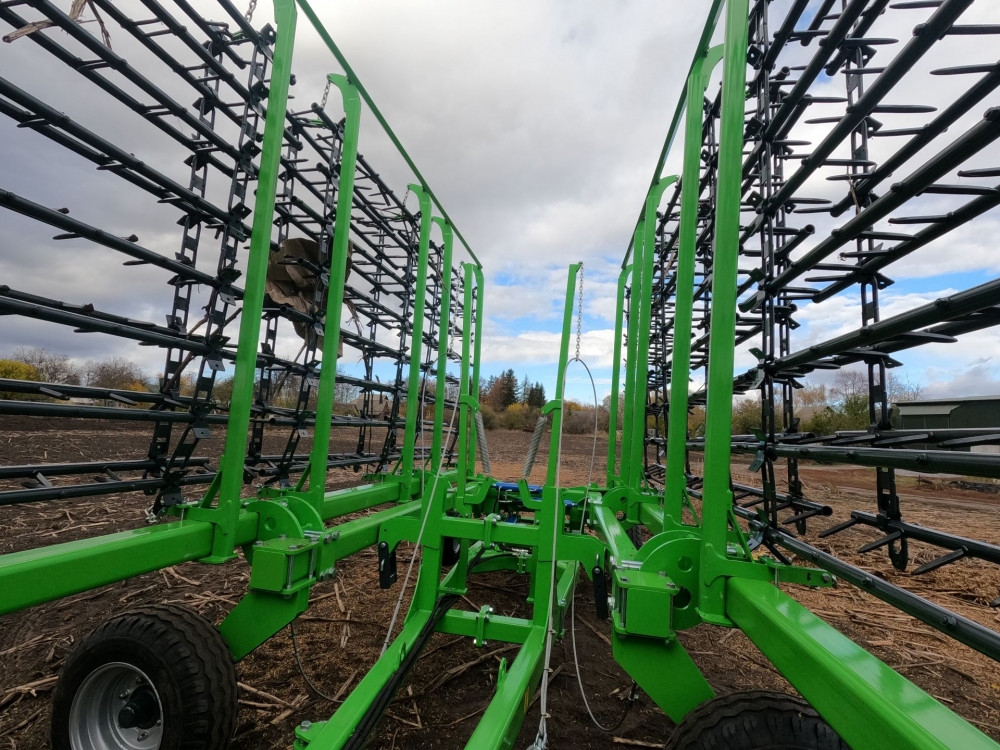

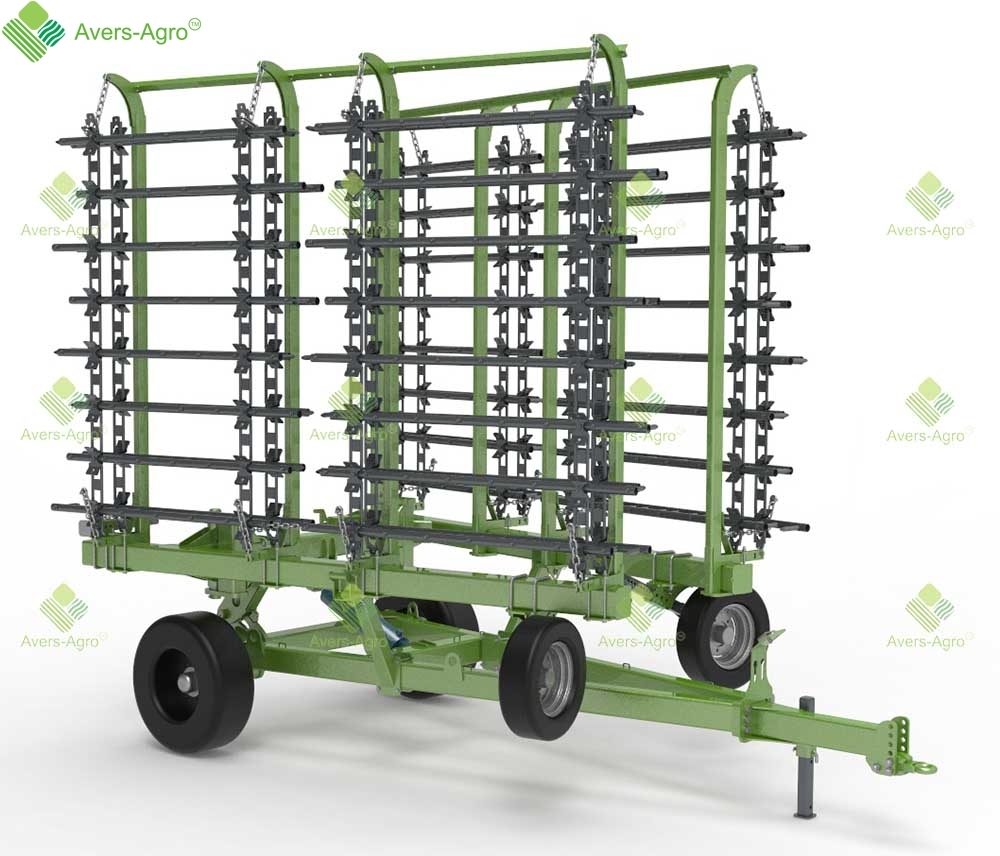

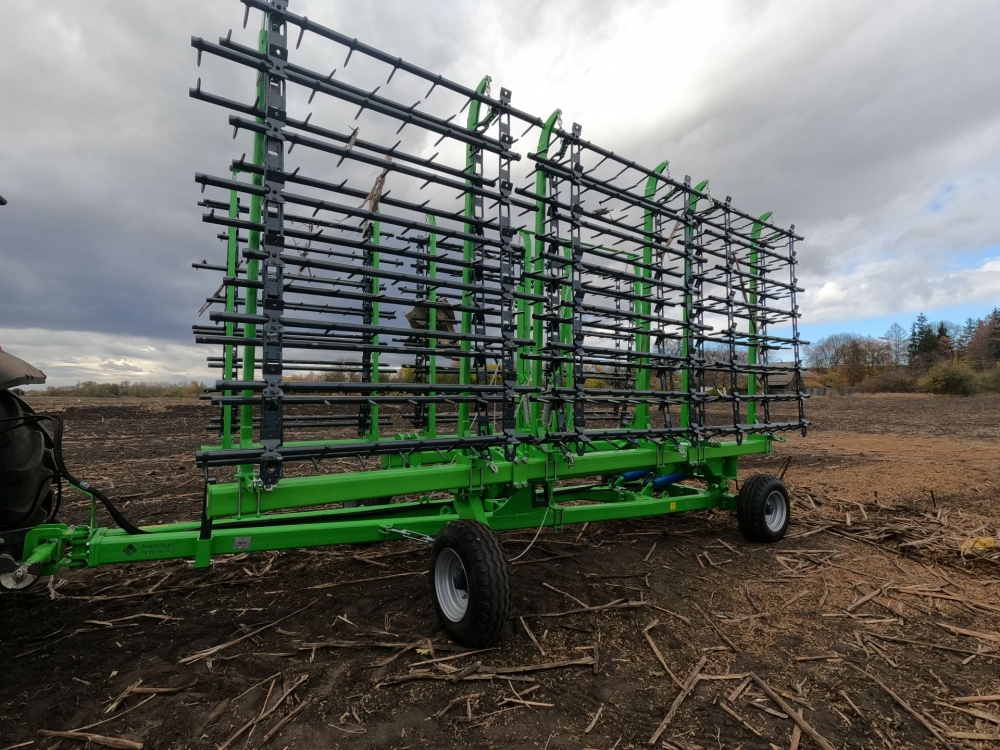

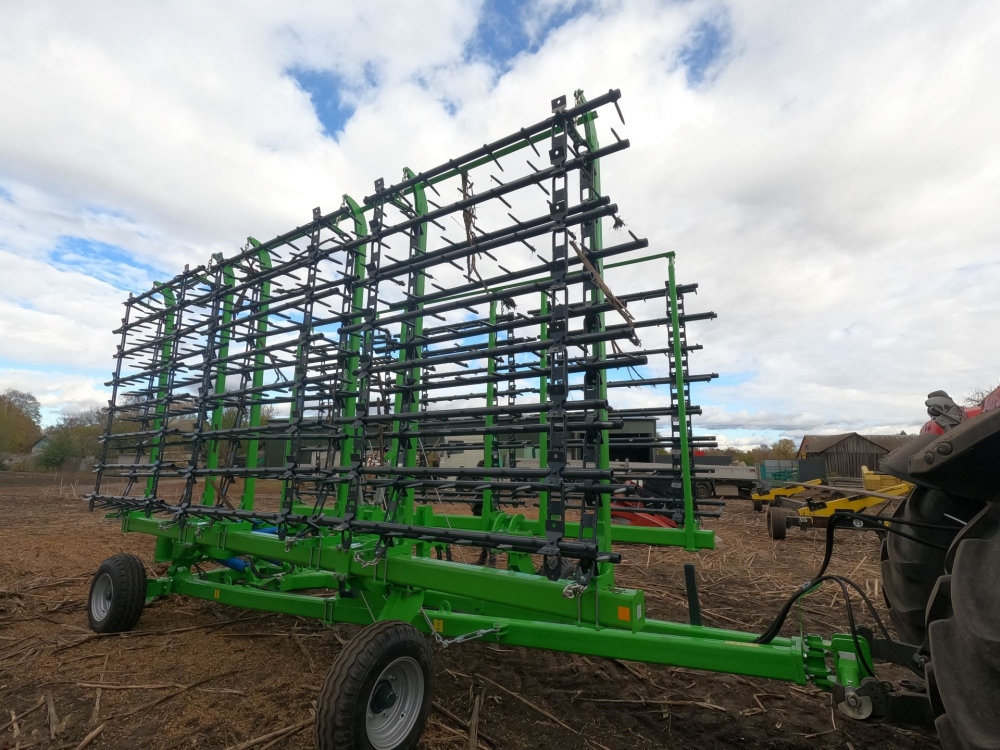

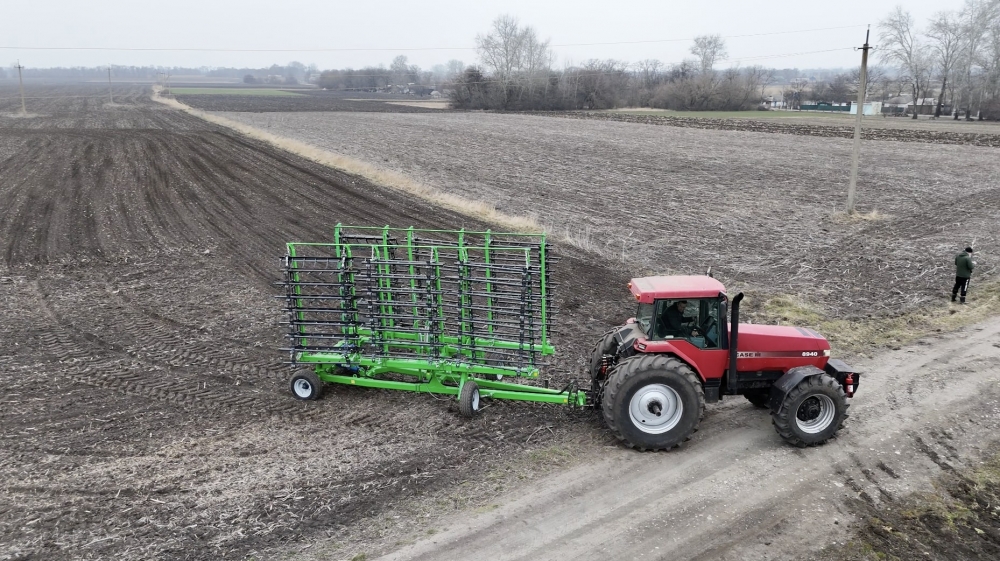

Overall dimensions in transport position |
|
length, m |
6,8 |
height, m |
4 |
width, m |
3,1 |

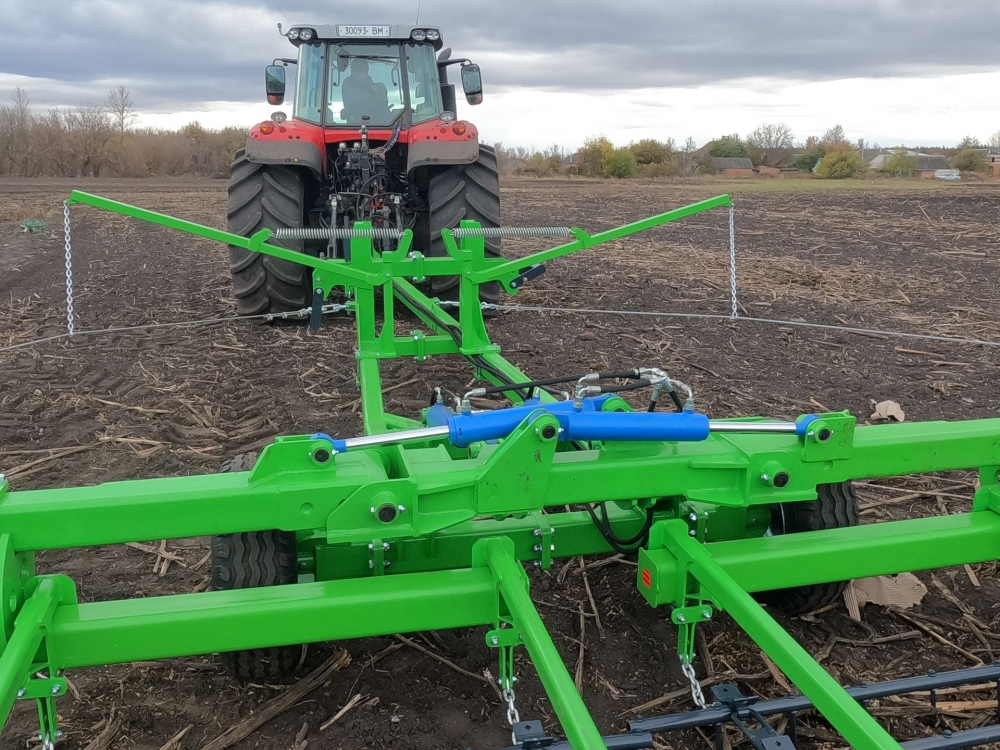

Power of tractor engine, min HP |
150 |
Minimum number of hidrofugados |
2 |
Weight, kg |
3620 |
